Collapsible Stacked Warehouse Welded Mesh Stillage Cage

Enhance your warehouse efficiency with our durable, collapsible welded mesh stillage cages. Designed for easy stacking and transport, these galvanized steel cages feature removable gates and forklift accessibility. Ideal for industrial storage and logistics, they save space and provide secure, versatile solutions. Customizable options available.

其他信息

Outer  Dimensions 1

800 x 600 x 640mm

Outer  Dimensions 2

1000 x 800 x 840mm

Outer  Dimensions 3

1200 x 1000 x 890mm

Outer  Dimensions 4

800 x 500 x 540mm

Outer  Dimensions 5

1550 x 1120 x 990mm

Outer  Dimensions 6

1205 x 1160 x 992mm

Outer  Dimensions 7

1060(l) x 1060(w) x 900(h) mm

Outer  Dimensions 8

1205 x 1165 x 1028mm

Outer  Dimensions 9

2320 x 1207 x 992mm

Outer  Dimensions 10

1158 x 1158 x 1035mm High

Outer  Dimensions 11

1150 x 1150 x 850mm

Outer  Dimensions 12

1200(L) x 1000(W) x 900(H)mm

Outer  Dimensions 13

1160 x 1205 x 652mm

Outer  Dimensions 14

1150 x 1150 x 890mm

Outer  Dimensions 15

1150 x 750 x 1170mm

Products Details

Collapsible Stacked Warehouse Welded Mesh Stillage Cage

Elevate your storage and logistics operations with our Collapsible Stacked Warehouse Welded Mesh Stillage Cage. Designed for versatility and efficiency, this cage is an essential solution for industrial environments such as warehouses, workshops, transport depots, and distribution centers.

Key Features:

  • Superior Versatility: Ideal for various industrial applications, including storage, transport, and maintenance.
  • Robust Construction: Made from galvanized steel wire mesh for durability and long-term use.
  • Space-Efficient Design: Collapsible and stackable, saving valuable storage and transport space.
  • Easy Access: Features removable front and rear gates for convenient access even when stacked.
  • Transportation-Friendly: Accessible by forklifts and pallet jacks, facilitating easy movement.
  • Secure Storage: Positive locking base design ensures safety on pallet racking, with anti-tip features.
  • Customizable Options: Available in various sizes and specifications with additional accessories like top lids and castors.

Why Choose Us - Product Advantage: Full auto scaling machine for smooth line pullout with no black spots. Chassis pressurized full welding treatment increases bearing capacity by 30%.

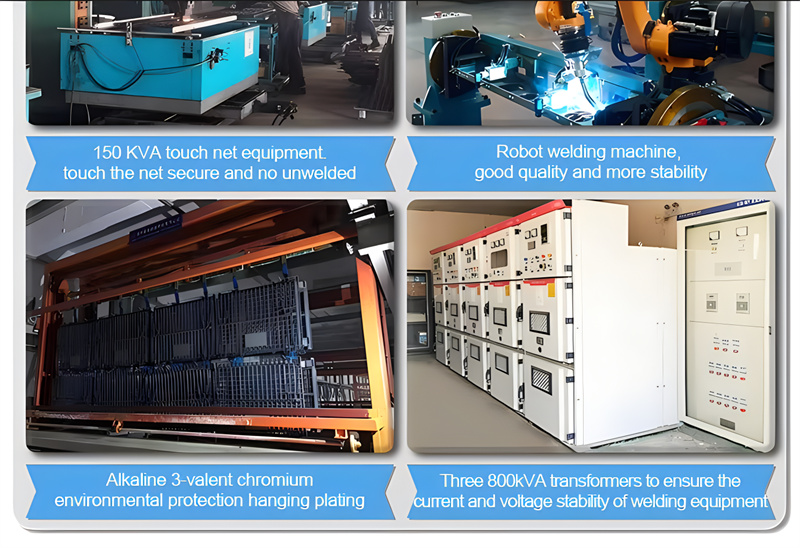

150 KVA touch net equipment for secure and unwelded touch; Robot welding machine for good quality and stability; Alkaline 3-valent chromium environmental protection hanging plating; Three 800kVA transformers ensuring current and voltage stability of welding equipment.

Specifications:

ModelWire DiameterGrid SizeNet WeightLoading CapacityOuter DimensionsInner Dimensions
A-16.0mm50*50mm28kg700kg800 x 600 x 640mm750 x 570 x 500mm
A-26.0mm50*100mm26kg500kg
B-16.0mm50*50mm44kg1200kg1000 x 800 x 840mm950 x 770 x 700mm
B-26.0mm50*100mm39kg800kg
B-36.0mm100*100mm33kg600kg
B-46.4mm50*50mm50kg1500kg
B-56.4mm50*100mm44kg1000kg
B-65.0mm50*50mm37kg600kg
B-75.0mm50*100mm31kg400kg
B-85.0mm100*100mm28kg300kg
C-16.0mm50*50mm59kg1500kg1200 x 1000 x 890mm1150 x 970 x 750mm
C-26.0mm50*100mm52kg1000kg
C-36.0mm100*100mm42kg1000kg
C-46.4mm50*50mm67kg2000kg
C-56.4mm50*100mm59kg1200kg
C-65.0mm50*50mm46kg1000kg
C-75.0mm50*100mm41kg800kg
C-85.0mm100*100mm36kg600kg
D-16.0mm50*50mm24kg600kg800 x 500 x 540mm750 x 470 x 400mm
D-26.0mm50*100mm23kg400kg
E-15.0mm50*50mm78kg1800kg1550 x 1120 x 990mm1500 x 1090 x 850mm
E-25.0mm50*100mm67kg1500kg

Multi-point welding process ensures strong capacity; Double welded wire construction reinforces side panels for stack safety; Fasteners join side panels for durability; Spiral spring hinge for better mesh connection; U-shaped channel steel enhances bearing strength; Special foot structure guarantees stability during load and stacking; Bend type handle for convenient switching; Independent door bolt structure for easy opening when stacked.

Popular Sizes:

  1. PCDW-01 Double Stillage Cage

    • Working Load Limit (WLL): 1000kg
    • Overall Dimensions: 1205 x 1160 x 992mm
    • Internal Clearance: 1080 x 1080 x 756mm
    • Unit Weight: 68kg
  2. PCDW-02

    • Working Load Limit (WLL): 1000kg
    • Inside Dimensions: 1060(L) x 1060(W) x 900(H) mm
    • Overall Dimensions: 1250(L) x 1250(W) x 1100(H) mm
    • Unit Weight: 110kg
    • Fork Pocket Size: 245 x 80mm
    • Fork Pocket Centres: 452mm
  3. PCDW-03

    • Working Load Limit (WLL): 2000kg (evenly distributed)
    • Overall Dimensions: 1205 x 1165 x 1028mm
    • Internal Clearance: 1080 x 1080 x 754mm
    • Unit Weight: 75kg

Detailed Product Models:

  1. Wire Stillage Cage 1150 x 1150 x 850mm (STILLAGE1)

    • Exterior Dimensions: 1150(L) x 1150(W) x 850(H)mm
    • Folded Size: 1150(L) x 1150(W) x 200(H)mm
    • Interior Dimensions: 1085(L) x 1115(W) x 710(H)mm
    • Wire Mesh Size: 50 x 100mm
    • Mesh Gauge: 6mm
    • Volume: 850L
    • Safe Working Load: 800kg
    • Weight: 31kg
  2. Wire Stillage Cage 1200 x 1000 x 900mm (STILLAGE2)

    • Exterior Dimensions: 1200(L) x 1000(W) x 900(H)mm
    • Folded Size: 1200(L) x 1000(W) x 190(H)mm
    • Interior Dimensions: 960(L) x 960(W) x 755(H)mm
    • Wire Mesh Size: 50 x 100mm
    • Mesh Gauge: 4.8mm
    • Volume: 800L
    • Safe Working Load: 800kg
    • Weight: 30kg
  3. Low Galvanised Storage Cage

    • Load Capacity: 1000kg
    • Base Height: 125mm
    • Internal Size: 1070(L) x 1070(W) x 480(H)mm
    • Overall Size: 1160(L) x 1205(W) x 652(H)mm
    • Unit Weight: 61kg
  4. Galvanised Mesh Cage

    • Folded Height: 300mm
    • Load Capacity: 1000kg
    • Mesh Size: 100 x 50 x 6mm
    • Overall Size: 1150(W) x 1150(D) x 890(H)mm
    • Unit Weight: 80kg
  5. Collapsible & Stackable Stillage Cage (Rectangular)

    • Load Capacity: 500kg
    • Fork Pocket Size: 132 x 85mm
    • Fork Pocket Centre: 250mm
    • Overall Dimensions: 1150(L) x 750(W) x 1170(H)mm
    • Internal Dimensions: 1090(L) x 680(W) x 925(H)mm
    • Collapsed Height: 425mm
    • Unit Weight: 74kg
  6. Collapsible & Stackable Stillage Cage

    • Load Capacity: 1200kg
    • Internal Size: 1035(L) x 1035(W) x 805(H)mm
    • Overall Size: 1125(L) x 1125(W) x 1040(H)mm
    • Unit Weight: 80kg
    • Optional Wheel Kit Load Capacity: 800kg

Packaging and Shipping:

  • Packaging: Plastic or metal straps to fix the product with paper to reduce friction.
  • Shipping: Loaded and unloaded by forklift, with customizable packaging support.

Upgrade your storage solutions with our Collapsible Stacked Warehouse Welded Mesh Stillage Cage and experience unparalleled efficiency and safety in your operations. Contact us today for more information and to customize your order to meet your specific needs.
