Description
Product Overview:
DB Fencing offers premium-quality Hesco Barriers, designed to provide unparalleled protection in military, environmental, and emergency scenarios. These barriers are extensively used for defense against blasts, controlling floods, and creating secure perimeters in volatile environments. With a durable zinc-coated steel welded mesh and a non-woven geotextile lining, our Hesco Barriers are recognized for their quick deployment, robust performance, and adaptability.
Style and Specifications:
The Hesco Barrier, also known as a defensive bastion or gabion barrier, is a prefabricated multi-cellular system designed to offer exceptional protection. The barrier is available in a range of specifications to suit different operational needs:
| Item No. | Height (M) | Width (M) | Length (M) | Number of Cells |
|---|---|---|---|---|
| DB(Mil 1) | 1.37 | 1.06 | 10 | 9 (5+4) |
| DB (Mil 2) | 0.61 | 0.61 | 1.21 | 2 |
| DB (Mil 3) | 1.0 | 1.0 | 10 | 10 (5+5) |
| DB (Mil 4) | 1.0 | 1.5 | 10 | 10 (5+5) |
| DB (Mil 5) | 0.61 | 0.61 | 3.05 | 5 |
| DB (Mil 6) | 1.68 | 0.61 | 3.05 | 5 |
| DB (Mil 7) | 2.21 | 2.13 | 27.74 | 13 (5+4+4) |
| DB (Mil 8) | 1.37 | 1.22 | 10 | 9 (4+5) |
| DB (Mil 9) | 1.0 | 0.76 | 9.14 | 12 (6+6) |
| DB (Mil 10) | 2.12 | 1.52 | 30.5 | 20 (5+5+5+5) |
| DB (Mil 11) | 1.22 | 0.3 | 1.22 | 2 |
| DB (Mil 12) | 2.13 | 1.06 | 33 | 30 (5+5+5+5+5+5) |
| DB (Mil 19) | 2.74 | 1.06 | 3.18 | 6 |
Technical Specifications for Barrier Panels:
- Steel Wire Composition: 0.1% carbon max steel
- Wire Thickness: 3.5mm to 5.0mm
- Wire Tensile Strength: 500-800 Mpa
- Welding Tensile Strength: 50-100% of wire tensile strength
- Mesh Size: 76.2×76.2mm or 100×100mm
- Surface Treatment: Zinc coating or Zinc-Al coating (40-600g/sqm)
Technical Specifications for Geotextile Fabric:
- Available Colors: Beige sand, Olive green, Grey
- Mass: 250g/sqm, 300g/sqm, 350g/sqm
- Tensile Strength: 16KN
- Tear Strength: 0.42KN
- CBR Puncture Strength: 3.0KN
- UV Strength Retention (ASTM D4355):
- 50% at 500 hours (5 years use life in common environments)
- 70% at 500 hours (10 years use life in common environments)
Features:
- Rapid Deployment: Capable of deploying over 1000 feet of MIL units in under 60 seconds with minimal logistical support.
- High Resistance: Effective protection against high explosives, shaped charges, RPG-7 thermobaric warheads, and various caliber weapon systems.
- Durability: Withstands up to 50MPH vehicle crashes and artillery attacks.
- Customizable: Units can be configured and extended to meet specific operational needs.
Applications:
- Environmental Barriers: Effective for emergency flood protection and long-term wetland restoration.
- Defensive Barriers: Provides secure protection for military personnel and critical infrastructure in conflict zones.
- Protective Barriers: Creates secure bunkers and accommodation for civilian or military use.
- Aesthetic Security: Rockface variants offer a visually pleasing solution for customer-facing perimeter security.
Installation:
The Hesco Barriers are easily installed using basic tools and manpower. Units can be extended by joining with provided pins and filled with locally available materials such as sand, gravel, or soil. This turns the barrier into a sturdy defense structure that can be quickly erected and dismantled as needed.
Advantages of DB Fencing Hesco Barrier:
- Superior Quality: Adheres to international standards with ISO, CE, BV, and SGS certifications.
- Competitive Pricing: High-quality products offered at competitive rates.
- Professional Support: Expert customer service to assist with specific project requirements.
- Efficient Delivery: Optimized logistics ensure timely delivery of products worldwide.

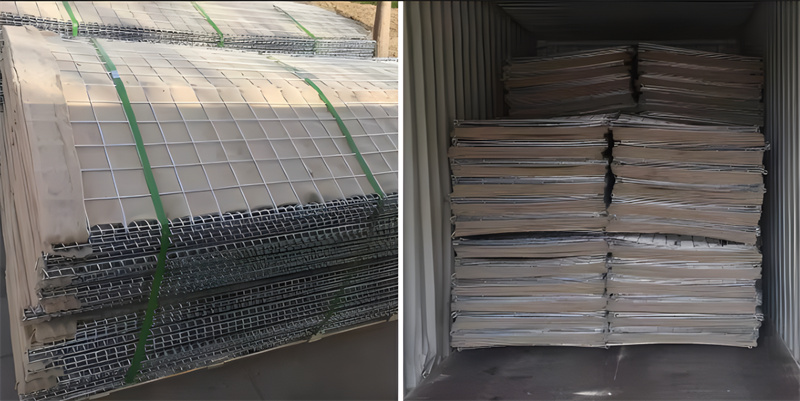

Packaging:
- Wrapped with shrink film, packed on a pallet, and secured with steel belts to prevent damage during transportation.
- Custom packaging options are available based on customer needs.
Why Choose DB Fencing?
DB Fencing is a trusted supplier for UN projects and global defense needs. Our Hesco Barriers provide essential protection with quick deployment, high durability, and customizable configurations, making them an ideal solution for military, environmental, and emergency applications.
Frank Zhang –
Q: What are wholesale Hesco barriers and how are they used for flood control?
A: Wholesale Hesco barriers are robust flood barriers designed to provide effective flood defence by creating a protective wall. They are typically filled with sand or similar materials and are widely used for military fortification and emergency situations, making them an essential component of a barrier system for flood control.
Q: How do Hesco bastion barriers differ from traditional flood barriers?
A: Hesco bastion barriers are specifically designed for both military and flood control applications. Unlike traditional flood barriers, they use a welded mesh and lined with non-woven material, allowing for easy assembly and minimal manpower to create a strong defense wall that can withstand various environmental challenges.
Q: Can Hesco barriers be used for both military and civilian purposes?
A: Yes, Hesco barriers are versatile and can be used for military fortification and flood control in civilian areas. They provide a reliable defense wall against flooding and can also serve as a defensive bastion in military operations.
Q: What materials are used in the construction of Hesco barriers?
A: Hesco barriers are made from galvanized steel wire mesh that is welded for added strength. They are often lined with PVC to enhance durability and resistance to the elements, ensuring their effectiveness in both flood and defense applications.
Q: How are Hesco barriers filled and what are the options for filling?
A: Hesco barriers are typically filled with sand, but they can also be filled with gravel or soil, depending on the specific needs of the situation. The filling process is straightforward, allowing for rapid deployment in emergency situations.
Q: What is the significance of using galvanized steel in Hesco barriers?
A: Galvanized steel is crucial in the construction of Hesco barriers as it prevents rust and enhances the durability of the barrier system. This ensures that the barriers remain effective for extended periods, providing reliable flood defence and protection against small arms fire in military settings.
Q: Are there any additional features that enhance the performance of Hesco barriers?
A: Yes, some Hesco barriers come with options for barbed wire or razor barbed wire on top, which adds an extra layer of security. This feature is particularly useful in military applications, where additional protection is needed against intrusions.
Q: What are filled barriers and how do they contribute to flood control?
A: Filled barriers are those that have been packed with materials such as sand or gravel to create a solid structure. In flood control, these barriers act as a strong defense against rising water levels, effectively redirecting and containing floodwaters to protect vulnerable areas.
Q: Where can I find high-quality Hesco barriers and life jackets?
A: High-quality Hesco barriers and life jackets, including quality life jackets designed for safety during floods, can be found through various wholesale suppliers. Look for companies that emphasize strict quality control to ensure you receive reliable products for your needs.
