A solid fence quality control checklist saves you from explaining to a project director why 400 panels just failed an AS 4687 spot check. On a typical civil site, the real headaches don’t start in the procurement office. They start when a container arrives and you realize the concrete feet are already cracked from transport vibration. You ordered perimeter security. You got a safety hazard and a replacement logistics nightmare.
The root cause is almost always a factory rushing the concrete cure time to hit a shipping window. Suppliers will pour the feet and load them into containers after five days. Concrete needs a minimum of 14 days to reach the tensile strength required to survive a 3,000-kilometer ocean transit without micro-fracturing. You catch this specific failure before it leaves the port by demanding a dated photograph of the pouring batch alongside the pre-shipment inspection video.
AS 4687 Factory QC vs Site Inspection
Site inspection catches defects after your money is spent. Factory QC stops them before the container seals — the only control point that changes the financial outcome.
Why Factory QC Is the Only Checkpoint That Matters
Rejecting one non-compliant 20ft container at the factory gate saves AUD $3,200–$4,500 in return freight alone. That number does not include site delay penalties averaging AUD $8,000+ or the SafeWork NSW fines that hit $50,000 per incident. Once a panel with 38-micron galvanization instead of the required 42-micron minimum clears Chinese customs, your options shrink to two: absorb the compliance risk or eat the replacement cost. There is no third option.
Publicly available checklists — Wake Tech’s installation guide, Edmonton municipal fencing standards — focus on whether posts are plumb and gates swing freely on-site. That is useful for an installer. It is useless for a procurement manager sourcing 500 panels from overseas. By the time the fence arrives on your civil project, the defects are locked into the steel. The hot dipped galvanized fence QC protocol has to run upstream, at the factory, or it runs nowhere.
AS 4687-2022 Requires Upstream Verification, Not Just On-Site Checks
Clause 3.2 of AS 4687-2022 governs material specifications. It does not say “materials should be checked on arrival.” It mandates that raw materials meet defined standards at the point of manufacture — steel grade, wire diameter tolerances, and galvanization thickness per ISO 1461. Clause 4.1 covers design requirements including mesh aperture dimensions and structural load capacity. Both clauses implicitly place the verification burden on the manufacturing stage because compliance cannot be retroactively applied to a finished panel with incorrect wire gauge or a mesh aperture that has drifted to 53mm instead of the 50mm ±2mm tolerance.
At DB Fencing, we run weld joint strength tests every 2 hours across all 10 welding lines, verifying each intersection meets the 500N minimum tensile requirement per Clause 3.2.2. This is not a document handed over at shipping — it is a physical destructive test performed on random samples pulled from active production. If a welding fixture shows dimensional drift, the line stops. That is the mechanism that makes an AS 4687 temporary fencing compliance checklist functional rather than ceremonial.
Factory QC Gates vs Site Inspection: Where Failures Actually Originate
Based on our internal reject data from 14 years of exporting to Australia and New Zealand, roughly 80% of AS 4687 compliance failures trace back to two production stages: galvanizing and welding. Site inspection almost never catches these because the defects are structural, not visual.
- Galvanizing thickness variance: Pre-shipment galvanization thickness testing using magnetic gauges at 5 points per panel catches coatings below 42 microns. Site inspectors rarely carry gauges, and visual inspection cannot distinguish 38 microns from 45 microns. This alone accounts for approximately 45% of failures.
- Cold welds at intersections: A weld joint strength test on wire mesh fence samples pulls intersections to failure. Cold welds separate under 200N — less than half the 500N requirement. Galvanization hides these visually. Destructive testing at the factory catches them; no site inspector is pulling panels apart on delivery.
- Concrete foot curing defects: Temporary fence concrete feet weight tolerance of 22kg ±1kg with 25MPa minimum compression strength is verifiable only through batch sampling and compression testing at the factory. Cracked feet discovered on arrival are a symptom of improper curing — a defect that originated 3 weeks earlier and cannot be reversed.
- Mesh aperture drift: A 3mm deviation from the 50mm × 150mm specification voids the anti-climb classification under AS 4687. This is caused by worn welding fixtures and is detectable only through caliper measurement at the production line, not by eye on-site.
Site inspection checkpoints — post plumbness, base stability, clip engagement — are valid. But they verify installation quality, not manufacturing compliance. Checking these on-site and calling it a “QC checklist” is like inspecting a house’s paint job while ignoring the foundation cracks.
Why Trading Companies Cannot Provide This Data
Trading companies operating out of Anping typically source galvanization from 15 or more subcontractors with zero standardization between batches. A single order for 800 panels can arrive from three different galvanizing baths with thickness readings swinging between 18 and 55 microns. When you request QC documentation, they provide a generic “ISO certificate” that covers the trading entity — not batch-specific mill test certificates tied to the actual panels in your container. The data opacity is structural, not accidental.
Factory-direct procurement eliminates this layer. When you deal with a manufacturer that controls its own welding lines, galvanizing baths, and — in our case at DB Fencing — the only in-house plastic feet injection molding machine in Anping, every QC gate maps to a specific machine, a specific batch, and a specific test result. That traceability is what turns a pre-shipment checklist into a contractually enforceable acceptance criterion, not a trust exercise.
Galvanization Thickness Testing Protocol
Reject any batch where a single magnetic gauge reading drops below 42 microns — partial compliance is non-compliance under AS 4687-2022.
Magnetic Thickness Gauge Sampling Protocol
For every 200-panel batch, pull five panels at random from different production runs. On each panel, take three separate magnetic thickness gauge readings: one at a weld joint, one on the top rail, and one at the base. If any single reading falls below 42 microns, reject the entire batch. This is not a statistical average — AS 4687-2022 treats one thin spot as a failure point because that is precisely where corrosion initiates and propagates through the weld structure.
ISO 1461 Mill Test Certificate Verification
A magnetic gauge reading on its own is insufficient for compliance disputes. Demand batch-specific mill test certificates referencing ISO 1461 for every galvanizing run. Trading companies routinely supply a generic “ISO 1461 certified” document that covers their factory registration but specifies nothing about the actual coating thickness applied to your order. The certificate must list the specific batch number, zinc bath temperature, immersion time, and average coating weight in grams per square meter — which converts directly to micron thickness. Without this document, your on-site gauge readings are unverifiable in a SafeWork NSW audit.
Electroplated coatings are the most common substitution fraud in Anping. They present a bright, visually appealing finish but typically test between 8 and 15 microns. In our internal ASTM B117 salt spray testing, electroplated temporary fence panels show red rust within 120 hours — roughly one Australian summer of coastal exposure. Hot-dipped galvanization at >42 microns exceeds 720 hours in the same test. If a supplier cannot produce ISO 1461 mill test certificates tied to your specific batch numbers, you are almost certainly receiving electroplated product regardless of what the proforma invoice states.
Hot-Dipped vs Electroplated: Specification Comparison
- Micron Thickness: Hot-dipped >42 microns per ISO 1461; Electroplated 8–15 microns with no enforceable standard
- ASTM B117 Salt Spray Resistance: Hot-dipped >720 hours to red rust; Electroplated <120 hours to red rust
- Estimated Coastal Lifespan: Hot-dipped 15–20 years in seaside environments; Electroplated fails within one summer season
- Traceability: Hot-dipped verified via batch-specific mill test certificates per ISO 1461; Electroplated has no equivalent traceable documentation for fencing applications
Fake Galvanization Certificates: The Most Common Fraud
In our 14 years exporting to Australia, the single most frequent compliance failure we witness on competitor shipments is forged or irrelevant galvanization documentation. The scheme is straightforward: a trading company purchases electroplated panels at a fraction of the cost, then attaches a recycled ISO certificate from an unrelated hot-dipped batch. When the panels arrive and fail on-site gauge testing, the importer bears the full cost of return freight, replacement production, and project delay penalties. For a detailed breakdown of how this fraud operates and how to audit certificate authenticity before payment, read our investigation into wire mesh supplier scams targeting Australian importers.
Weld Joint Strength Verification Methods
Visual inspection catches less than 30% of cold weld defects. If your supplier’s QC stops at looking at the panel, you are paying for a coin flip.
Two-Tier Verification: Visual Then Destructive
The first tier is a surface-level scan for cold weld indicators. On a hot-dipped galvanized panel, a proper weld joint shows uniform zinc coverage across the intersection — the zinc pools and solidifies consistently around the node. Cold welds reveal themselves as dark spots, flat matte patches, or pinhole voids where the zinc did not bond because the underlying steel never reached fusion temperature. This catches the obvious failures, but it is fundamentally inadequate on its own because galvanization masks structural weakness beneath a visually acceptable surface.
The second tier is destructive tensile testing at a minimum of 500N per weld node, as specified under AS 4687-2022 Clause 3.2.2. A technician physically peels or shears a wire from the intersection using calibrated force-measuring equipment. The joint must hold at or above 500N before failure. If it separates below that threshold, the entire batch is suspect because the welding machine’s electrode pressure or current was drifting — a systemic issue, not an isolated defect. Demand video evidence of this test being performed on randomly sampled panels from your specific production run, not a generic “test report” pulled from an archive.
The 2-Hour In-Line Test Interval
Here is the detail that separates a real factory from a trading company posing as one. Legitimate manufacturers run in-line weld shear tests every 2 hours during production, recording the force readings, machine line number, time stamp, and operator ID. At DB Fencing, across our 10 welding lines producing up to 2,000 sets per week, this generates a continuous data trail that maps weld consistency across every shift. If a line starts drifting at hour three, the record shows exactly when and where it happened, and which panels between the last clean test and the failure need to be quarantined.
Trading companies in Anping almost never have access to this data because they do not control the production floor. They submit purchase orders to subcontracted workshops, receive finished panels, and forward whatever documentation the workshop provides — which is typically a single summary sheet with no time-series granularity. When you ask a trading company for “weld test records,” you will get a PDF with a pass/fail checkbox and a stamp. When you ask a factory that runs its own lines, you get a logbook or digital record showing individual node test results plotted across the production day. The difference is not formatting — it is traceability, and it is the only mechanism that makes a batch-level weld joint strength test meaningful rather than theatrical.
Benchmarking the QC Station During Factory Audits
When you walk a production line during a factory audit, the weld joint strength verification station should be physically positioned within 15 meters of the welding machine — not in a separate lab building visited once a week. You should see a calibrated tensile tester (not a spring scale), a logbook or tablet with real-time entries, and a quarantine zone marked on the floor where failed-sample panels are segregated. If the QC station is a desk in a distant office with no direct line of sight to the welding line, the 2-hour test interval is being honored on paper only.
For a detailed breakdown of what a compliant production line QC layout looks like — including station positioning, equipment specifications, and record-keeping formats — reference this OEM fence manufacturing process guide. Use it as a physical checklist during your next Anping factory visit. If the layout on the floor does not match the stations described, you are not auditing a manufacturer — you are touring an assembly point, and your weld joint strength guarantees are only as reliable as the subcontractor you never meet.
Temporary Fence Dimensional Tolerances
A 3mm mesh aperture overshoot voids anti-climb classification under AS 4687 Clause 2.1.3. Your pre-shipment QC checklist must treat this as a hard reject, not a negotiation point.
AS 4687-2022 Dimensional Checkpoints
AS 4687-2022 specifies four critical dimensions on temporary fence panels that SafeWork inspectors will measure during site spot checks. Every sampled panel in your pre-shipment inspection must fall within these ranges, not an average across the batch.
- Panel Height: 1800mm ±5mm
- Mesh Aperture: 50mm x 150mm ±2mm
- Frame Tube OD: 32mm ±0.5mm
- Frame Wall Thickness: 1.6mm minimum (no negative tolerance permitted)
The 3mm Anti-Climb Trap
Most procurement managers assume a 50x153mm mesh aperture is “close enough.” Under AS 4687 Clause 2.1.3, it is not. The standard ties anti-climb classification directly to maximum aperture dimensions. A 3mm deviation on the 50mm axis creates a gap wide enough for a foothold, which automatically reclassifies the panel from “anti-climb” to standard fencing.
The practical consequence is immediate. If a SafeWork NSW inspector measures 53mm on a panel your site plan declares as anti-climb, the entire batch fails the spot check. You face penalties up to $50,000 per incident and an immediate stop-work order while you source compliant replacements. We have seen this exact scenario play out on three separate projects in NSW and Victoria over the past two years — in every case, the root cause was a supplier whose welding fixtures had worn beyond tolerance.
Measurement Protocol: Three-Point Caliper Method
Visual inspection will not catch a 2mm mesh deviation. Your QC checklist must mandate digital caliper measurement at three defined points on every sampled panel: top-left quadrant, dead center, and bottom-right quadrant. This triangulation catches fixture drift, which typically manifests as wider apertures at the panel edges where the welding jig has loosened over production cycles.
At our Anping facility, QC technicians perform this three-point caliper check every two hours across all 10 welding lines. When you source from trading companies who batch-source from multiple subcontractors, this protocol does not exist. A single container can hold panels produced on three different welding fixtures with three different wear profiles. Demand time-stamped caliper photos per batch in your procurement RFP — if the supplier cannot provide them, you are accepting unmeasured risk.
For a detailed look at where these tolerances are physically set and monitored on the production floor — from raw coil decoiling through the welding jig to final galvanization — see our wire mesh factory tour walkthrough, which covers each checkpoint in the manufacturing sequence.
| Component | Nominal Dimension | AS 4687-2022 Tolerance | QC Protocol | Rejection Trigger |
|---|---|---|---|---|
| Mesh Aperture | 50mm x 150mm | ±2mm | Measure aperture at three distinct points across the panel using digital calipers. | Reject batch immediately if deviation exceeds 2mm; a 3mm deviation voids anti-climb classification. |
| Post Alignment | 1800mm Height | ≤ 2mm verticality deviation | Place panel in a laser alignment jig to verify verticality over the full 1800mm height. | Reject entire batch; misalignment indicates a worn welding fixture and systemic dimensional drift. |
| Concrete Feet | 22kg | ±1kg | Weigh each foot on a calibrated scale. Verify 25MPa compression strength via destructive batch sampling. | Reject if weight falls outside 21kg–23kg range; indicates improper curing or dangerous internal voids. |
| Panel Frame | 32mm OD x 1.6mm Wall | ±0.2mm wall thickness | Measure wall thickness at the top, middle, and bottom of both vertical posts using a micrometer. | Reject if any reading drops below 1.4mm; thin walls will fail weld joint tensile strength requirements. |
Concrete and Plastic Feet QC Gates
Concrete feet cracking during transit is a curing defect, not a handling defect. If your supplier blames logistics, they are hiding a manufacturing failure.
Concrete Feet: The 25MPa Threshold
Weigh every sampled concrete foot on a calibrated scale. The temporary fence concrete feet weight tolerance must sit at 22kg ±1kg. Anything under 21kg signals insufficient material density or internal voids caused by rushed curing — the root cause of feet shattering when containers hit rough seas or are dropped by forklifts at the Australian depot.
Demand compression strength test certificates showing a minimum of 25MPa. Most trading companies in Anping cannot provide this because their subcontracted concrete yards air-cure blocks for 3–5 days to free up mold space, achieving closer to 15–18MPa. Properly cured concrete at 25MPa requires a minimum 7-day controlled cure cycle. No exceptions.
Cut one foot per batch in half with a masonry saw. Verify the mandatory steel reinforcement mesh is embedded — not resting at the bottom, not absent entirely. We have seen feet from three different Anping suppliers that contained zero steel reinforcement. They passed visual inspection and weight checks but fractured the moment a loaded pallet shifted in transit.

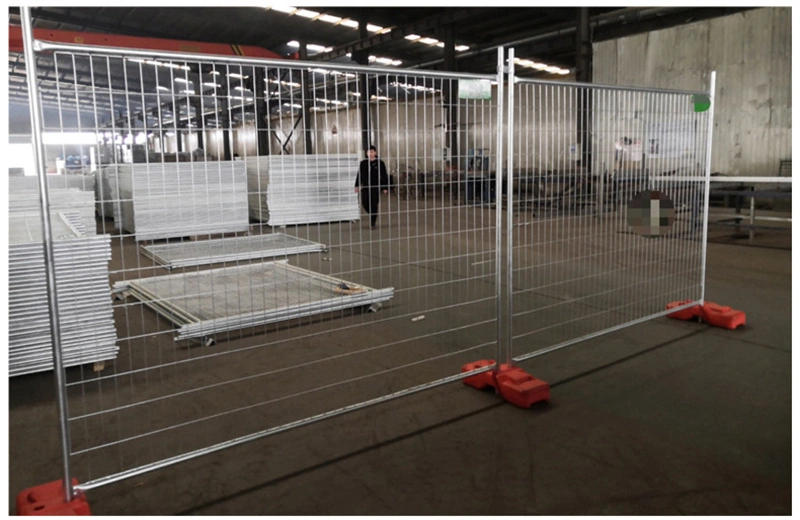

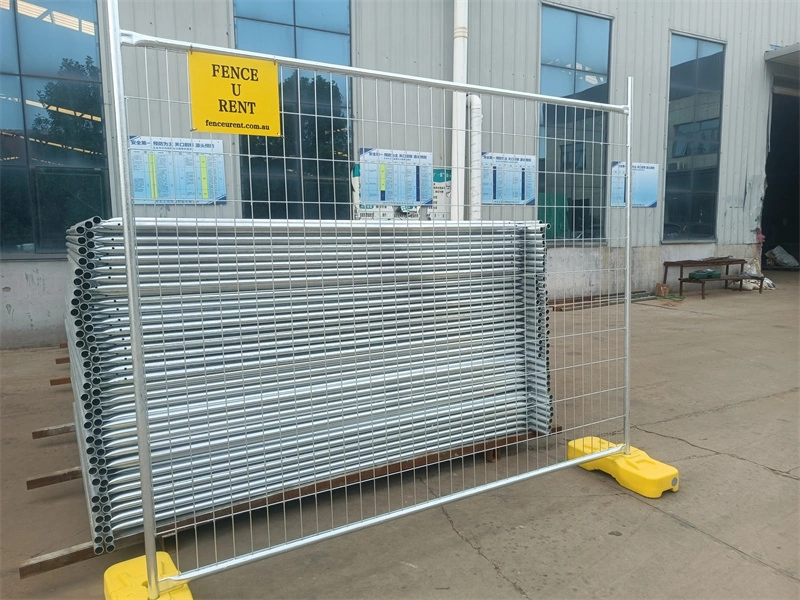

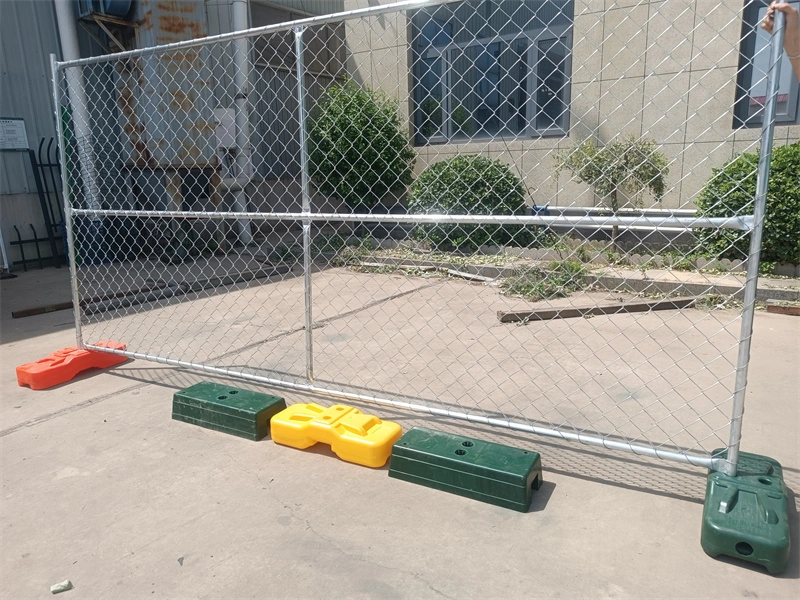

Plastic Feet: Why In-House Injection Molding Matters
DB Fencing produces UV-stabilised recycled polypropylene plastic feet at 4.5kg each using our own injection molding machines. We are the only factory in Anping operating a dedicated plastic feet production line, which means we control the injection pressure, cooling time, and mold cavity wear directly. Consistent wall thickness across the foot base is the non-negotiable output of that control.
Outsourced plastic feet from third-party injection molders routinely exhibit 15–20% wall thickness variation between units from the same order. This happens because external molders run high-cavity molds at maximum speed to hit piece-rate targets, and as the steel mold heats up during continuous operation, the polypropylene flows differently into later cavities. The result: some feet are structurally sound, others will deform under a 22kg concrete block load after two weeks of UV exposure.
When evaluating a new supplier, measure wall thickness at four points on each plastic foot using calipers — front wall, rear wall, and both side walls. Flag any variance exceeding 1.5mm across the four points on a single unit. That single measurement will disqualify more outsourcing-dependent factories than any certificate they present.
If you are transitioning suppliers or trialing a new factory, order a test batch first. Our low MOQ fence manufacturer program starts at 100 panels, which lets you subject both concrete and plastic feet to your own compression and UV testing before committing to a 500+ panel project order. Run your own caliper checks. If the numbers do not hold, walk away before the container is sealed.
Conclusion
Catching a sub-42-micron galvanization failure at the factory gate saves you over $3,200 in return freight and blocks a $50,000 SafeWork fine. On-site installation checklists are a waste of time for procurement. Your supplier already baked those defects into the steel, so you must demand batch-specific mill test certificates and destructive weld testing before the container gets sealed.
Send this pre-shipment checklist to your current supplier and demand their batch-specific ISO 1461 certificates. If they hesitate, request a sample panel from our facility to see what compliant manufacturing actually looks like.
Frequently Asked Questions
Are fence components free from defects?
As an ISO9001 and SGS certified manufacturer, DB Fencing implements strict pre-shipment protocols that go far beyond standard visual inspections. While imported temporary fencing often hides cold welds at mesh intersections or internal voids in concrete feet, our QC checklist mandates destructive weld testing and concrete compression sampling to catch defects. This rigorous approach ensures our construction and civil engineering clients in Australia and New Zealand receive reliable, defect-free security fencing for every project.
How do you verify post alignment?
At DB Fencing, we verify post alignment during production using precision laser alignment jigs to ensure verticality within a strict 2mm tolerance over the standard 1800mm height. By actively monitoring our 10 welding production lines for fixture wear, we prevent dimensional drift before entire batches are completed. This proactive factory-level QC guarantees that event management companies and construction firms receive perfectly aligned crowd control barriers and temporary fencing that assemble seamlessly on-site.
What is the correct tension wire gauge?
The correct tension wire gauge for temporary fencing must meet Australian Standard AS 4687-2022, which strictly specifies a minimum diameter of 3.15mm for both top and bottom wires. Unlike cost-reduced alternatives that use inferior 2.5mm wire prone to sagging under wind load, DB Fencing engineers our panels to easily pass the 150N horizontal deflection test. Paired with our >42 microns hot-dipped galvanized finish, our compliant tension wires ensure long-lasting durability for distributors operating in harsh outdoor environments.
How do you identify damaged mesh before shipping?
Drawing on 14 years of export experience, our pre-shipment checklist identifies damaged mesh by specifically checking for galvanization flaking at bend points, which indicates improper manufacturing sequence. Our QC team uses a 50mm reference gauge to detect uneven mesh aperture spacing and meticulously photographs every pallet edge panel prior to container loading. This meticulous documentation process protects our global fence distributors and retailers by ensuring only premium, structurally sound panels are bulk-shipped to their warehouses.
Why must ties match the fencing material?
Wire ties and hog rings must match the fencing material because dissimilar metal contact, such as carbon steel against galvanized panels, triggers galvanic corrosion that accelerates rust by 3-5x. To comply with AS 4687-2022 Clause 3.3, DB Fencing exclusively supplies matching hot-dipped galvanized fasteners with our >42 micron coated panels. This critical material synergy is essential for agricultural wholesalers and construction firms deploying livestock fencing or anti-climb mesh in harsh seaside or coastal Australian environments.
