Steel Picket Fence Cost Per Metre

Figuring out the actual steel picket fence cost on an Australian civil project usually ends in a nasty surprise once the compliance inspector walks the site. I saw it happen on a Queensland subdivision last year. The procurement team chased the lowest quote per metre and brought in panels with a thin 25-micron galvanized coating. The certifier failed the entire lot on day one. The builder ate a $40,000 replacement bill and lost three weeks to site delays because the fencing did not meet AS 4687-2022 requirements.

You need to stop comparing quotes based on a price per metre alone. We pulled our production data from the last three years of supplying the Australian market to break down what actually drives the final price tag. You will see exactly how steel gauge, galvanization depth, and certification testing change the unit price. That quote that looks 20% cheaper on paper will cost you double once it fails inspection on site.

Average Cost Per Metre for Steel Picket Fences

Factory-direct steel picket fencing for Australian projects typically lands between AUD $38 and $75 per linear metre, depending on steel specification and order volume.

Basic Range Pricing

The basic tier covers standard residential and light commercial specs: 1.2m to 1.5m heights, 40x40mm posts, two horizontal rails, and standard oval or round pickets. At factory-direct pricing from Anping, this range sits at AUD $38 to $48 per linear metre for container-load orders. The finish at this price point is typically a standard hot-dipped galvanised layer meeting the minimum >42 micron threshold we enforce, with a single-coat powder finish on top.

Premium Range Pricing

Premium steel picket fencing covers specifications demanded by civil and commercial projects governed by Australian Standard AS 4687-2022. This means heavier rail profiles, thicker posts (often 50x50mm or 65x65mm), closer picket spacing for anti-climb compliance, and multi-coat powder applications rated for harsh seaside environments. Factory-direct pricing for this tier runs from AUD $55 to $75 per linear metre. The upper end of that range reflects custom picket profiles, specialised colour matching, and heavy-duty galvanised substrates designed to outlast standard retail offerings by a significant margin.

Australian Market Averages

Understanding the gap between factory-direct cost and local Australian market pricing is critical for procurement managers evaluating margin potential. Local fencing contractors and retailers in Australia typically sell installed steel picket fencing at AUD $85 to $150+ per linear metre. That figure bundles the material cost, site preparation, concrete footing installation, council compliance checks, and the contractor’s labour margin. For wholesale distributors buying direct from manufacturers like DB Fencing, the landed cost per metre after shipping and duties generally falls 40% to 55% below local retail material pricing, leaving substantial room for competitive resale.

Volume plays a decisive role in these averages. A single pallet order (100 panels minimum at our facility) will carry a higher per-metre freight cost than a full 20-foot container. For Australian procurement teams running multi-site programs, consolidating orders into container shipments is where the real unit cost advantages emerge compared to buying through domestic middlemen.

Key Factors Influencing Steel Picket Fence Pricing

Steel picket fence cost comes down to three direct variables: panel height, picket spacing, and raw steel gauge. Even small spec adjustments shift unit pricing significantly at bulk order volumes.

Height Variations

Panel height is the most visible driver of steel picket fence cost. Taller panels demand longer steel pickets, wider intermediate rails, and heavier post profiles to maintain structural rigidity. For Australian construction procurement, the most frequently specified heights fall between 900mm and 1800mm.

Moving from a standard 1200mm panel to a 1800mm panel does not simply add 50% more steel. The engineering requirements for wind load compliance under AS 4687-2022 force a transition to thicker rails and closer post spacing. In our production runs, a 1800mm panel typically consumes roughly double the raw steel weight of a 1200mm panel, and the unit price reflects that jump.

Picket Spacing and Style

Picket spacing directly controls two things: material consumption and the visual profile of the fence. Tighter spacing means more pickets per panel, which increases both steel usage and welding time on the production line. A standard 50mm gap between pickets uses noticeably more steel than a 75mm or 100mm gap, and that cost compounds quickly across a 500-panel order.

Picket style adds another layer of pricing variation. Flat-top pickets require less processing than spear-top or pointed styles, which demand additional stamping or cutting steps. For distributors targeting the residential or architectural market, spear-top profiles command a premium because of that extra tooling and labor. If the application is purely functional—such as boundary demarcation on a civil site—flat-top pickets keep the cost per panel lower.

Gauge and Thickness of Steel

Steel gauge is where most pricing confusion happens. A thinner gauge reduces the upfront cost per panel but compromises the corrosion allowance and structural lifespan, particularly in coastal or high-moisture environments. We apply a hot-dipped galvanized finish exceeding 42 microns specifically because anything thinner risks premature rust in Australian seaside conditions.

Common picket thicknesses range from 1.2mm to 4.0mm depending on the application. Pool fencing compliant to AS 1926.1 typically requires a minimum of 1.6mm, while high-security or commercial boundary fencing often specifies 3.0mm or heavier. The raw steel market is volatile, and a 0.5mm thickness increase can add 15-25% to the panel cost purely in material weight. When we quote projects, we always lock the gauge to the compliance standard first, then price from there—because down-gauging to save on unit cost will fail inspection and cost far more in remediation.

Material and Specification Cost Breakdown

Material specifications drive 65-75% of your total steel picket fence cost. Get the steel grade or coating wrong, and you pay twice in replacement.

Raw Steel Costs

For Australian construction procurement, the baseline steel grade is Q235. Some specifiers push for Q355 on high-wind or high-impact sites, but that adds roughly 8-12% to your raw material cost per panel. The real cost driver is picket thickness. A 2.0mm picket versus a 1.5mm picket can increase your per-panel steel cost by 25-30%, but it also determines whether your fence survives a category 2 cyclone or a site vehicle impact.

Steel commodity pricing out of Anping fluctuates monthly, typically ranging between USD 550-700 per ton for Q235. We lock pricing at order confirmation for bulk shipments, which matters when you are quoting a 5,000-panel civil project. Rail thickness follows the same logic: 40x40mm rails at 2.0mm versus 1.5mm is a marginal per-unit increase but a significant durability gain.

Powder Coating and Finish Options

This is where most importers cut corners and where Australian compliance catches them. AS 4687-2022 mandates specific durability requirements, and a thin electro-galvanized layer with a cheap powder coat will fail within 18 months in coastal environments. We apply hot-dipped galvanized finishes exceeding 42 microns as our internal baseline before any powder coat is applied.

• Hot-Dipped Galvanized Only: >42 microns zinc layer. Base cost, no color. Ideal for industrial sites where aesthetics are irrelevant.
• Galvanized + Polyester Powder Coat: 60-80 microns total finish. Standard for residential and commercial. Adds USD 1.50-2.80 per panel depending on color.
• Galvanized + Interpon Powder Coat (AkzoNobel): Premium option. 15-year coastal warranty. Adds USD 3.50-5.00 per panel but eliminates warranty claims on corrosion.

For Australian buyers, skipping the hot-dip stage and going straight to powder coat over cold-rolled steel is the single most expensive mistake you can make. The coating blisters, flakes, and your client strips it out within two years.

Posts, Rails, and Caps

Posts typically represent 20-25% of your total material cost. A standard 50x50mm post at 2.0mm wall thickness with a welded base plate is the most common spec for temporary and semi-permanent construction fencing. For permanent installations, 75x75mm or 100x100mm posts with extended base plates for concrete embedment are standard.

Post caps and rail connectors are often treated as afterthoughts by buyers, but they are visible failure points. Plastic caps degrade under UV exposure in 12-18 months. Welded flat caps or pressed metal caps cost roughly USD 0.15-0.30 more per unit but last the life of the fence. For bulk orders of 500+ sets, we include post caps at no additional unit cost because we manufacture these in-house on our own tooling lines rather than outsourcing them.

Labour and Installation Expenses

Labour typically accounts for 40% to 60% of the total installed cost of a steel picket fence, frequently exceeding the material price on commercial projects.

Hourly Rates for Fencing Contractors

In Australia, licensed fencing contractors generally charge between AUD $50 and $80 per hour for a single tradesman, with a two-person crew costing AUD $100 to $160 per hour. Rates in major metropolitan areas like Sydney and Melbourne sit at the upper end of that band, while regional installations in Queensland or Western Australia can fall closer to the lower threshold.

For commercial and civil projects governed by AS 4687-2022, expect to pay a premium. Contractors working on compliant pool fencing, roadside barriers, or secure site perimeters typically charge 15% to 20% above standard residential rates due to the stricter inspection requirements and liability involved.

Site Preparation and Ground Conditions

Ground conditions are the single biggest variable in installation costing that procurement teams consistently underestimate. A clean, level site with loose soil allows a crew to set posts at a rate of 8 to 10 per hour. Rocky substrata, reactive clay, or buried utilities can drop that rate to 2 to 3 posts per hour and introduce additional machinery hire costs.

• Rock drilling: Adds AUD $15 to $30 per post hole when augers hit solid rock.
• Concrete removal: Cutting through existing slabs or footpaths adds AUD $40 to $60 per linear metre.
• Slope adjustment: Raking panels on uneven terrain increases labour time by roughly 25% compared to flat-ground installs.
• Dial-before-you-dig delays: Utility locating services can add 2 to 5 business days to the project schedule if not arranged in advance.

From a supply chain perspective, factory-welded panels with consistent dimensions reduce on-site adjustments. We have found that panels manufactured within a 2mm tolerance variance on picket spacing allow contractors to maintain their fastest installation pace without force-fitting components.

Timeframe and Project Complexity

A straightforward commercial run of steel picket fencing on prepared ground typically installs at a rate of 15 to 20 linear metres per day for a two-person crew. Projects involving corner cuts, gates, stepped fencing, or integration with existing structures will reduce that output significantly.

For procurement managers benchmarking budgets, a practical rule of thumb is to allocate AUD $45 to $70 per linear metre purely for labour on a standard commercial installation. This covers post setting, panel fixing, capping, and site cleanup. If the project involves complex terrain or access constraints, that figure can push past AUD $90 per metre. Sourcing fully welded, pre-galvanized panels with hot-dipped finishes above 42 microns eliminates the need for on-site touch-up painting, which can shave 10% to 15% off total labour hours on large-scale deployments.

Explore AS-Compliant Steel Picket Fencing Options.

Find galvanised and powder-coated steel picket fences built for residential and commercial perimeters. Check out our full range of AS-compliant specifications and wholesale options.

See Full Product Range →

Wholesale vs Retail Procurement Costs

Direct factory procurement of wire mesh fencing cuts out middleman margins entirely and puts AS 4687-2022 compliance verification in your hands.

Volume Pricing Tiers

Wholesale pricing for temporary fence panels and crowd control barriers follows a straightforward tier structure tied to order volume. At DB Fencing, the entry threshold sits at a low MOQ of 100 panels, which already positions your per-unit cost well below retail rates. As volume scales toward full container loads, the per-panel price drops further because fixed production setup costs are distributed across a larger run.

A 20-foot container typically holds around 200 to 250 temporary fence panels depending on specifications, while a 40-foot high-cube container accommodates roughly 500 to 600 sets. Ordering at container-load levels is where the real margin advantage sits for Australian distributors and construction procurement teams.

Direct from Manufacturer Benefits

Buying retail through a local distributor means paying for warehousing, handling, and at least two margin layers before the product reaches your site. A factory-direct model eliminates those costs. More importantly for Australian buyers, it removes the compliance guessing game entirely.

DB Fencing operates 10 welding production lines out of Anping County with a weekly capacity of 2,000 sets. Products are manufactured to Australian Standard AS 4687-2022/2007 with hot-dipped galvanized finishes exceeding 42 microns, which is critical for fencing deployed in coastal or high-corrosion environments across Australia and New Zealand. We are also the only supplier in Anping with our own plastic feet machine, meaning we control the quality and cost of a component that other local vendors actually purchase from us.

Supply Chain Logistics and Delivery

Seventy-five percent of DB Fencing’s export business ships to Australia and New Zealand, so the logistics pipeline to these markets is mature and predictable. With 14 years of export experience, lead times and shipping schedules are well-established. We provide 24-hour quoting so procurement managers can lock in pricing and plan around actual transit windows rather than vague estimates.

For construction firms running to tight project timelines, the combination of in-stock production capacity and established shipping routes means fewer delays compared to sourcing through intermediaries who may not hold inventory or have direct factory communication.

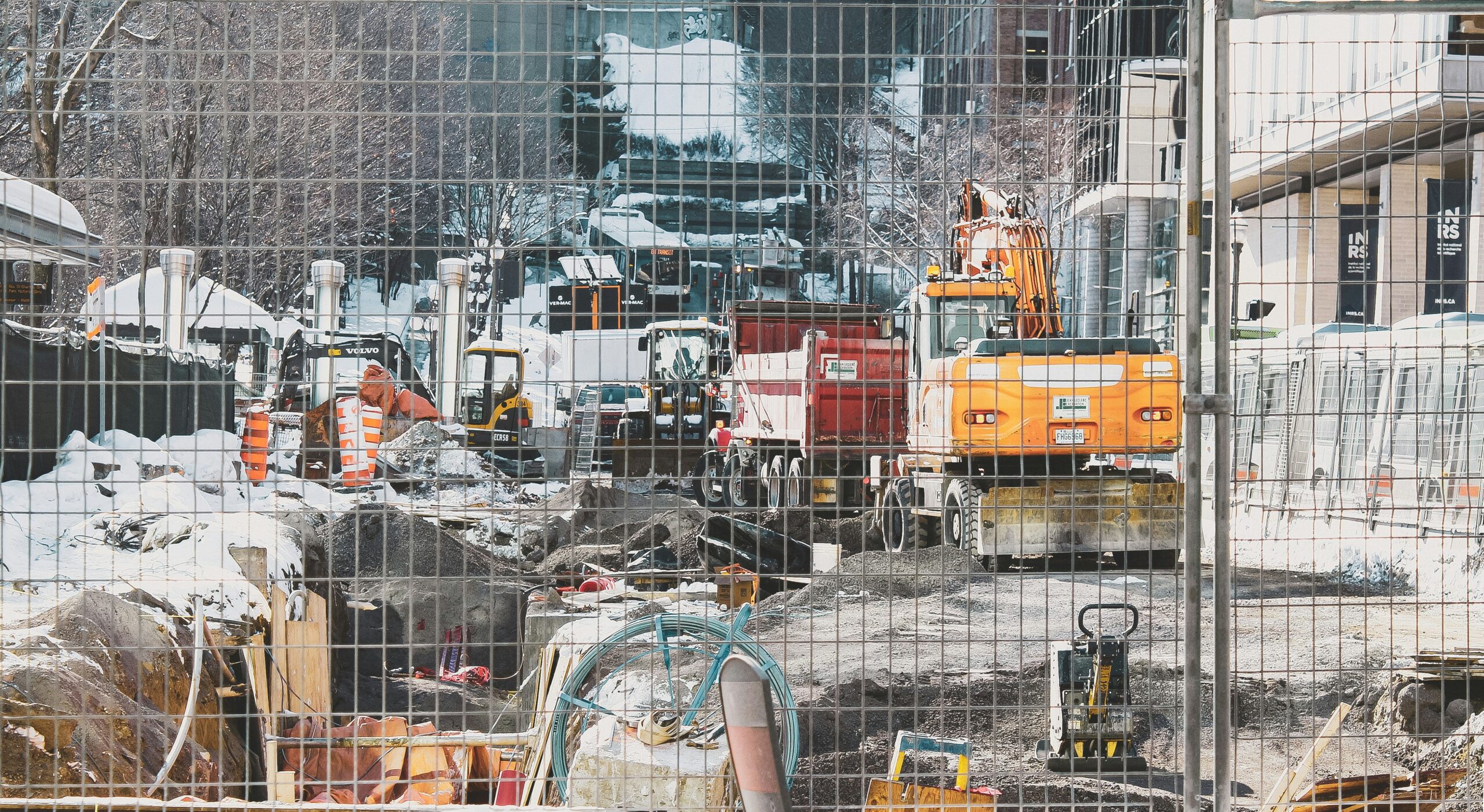

Additional and Hidden Project Costs

Hidden project costs typically add 15–25% to a steel picket fence budget. Procurement managers who fail to account for these upfront almost always face budget overruns.

Council Permits and Compliance Fees

In Australia, fence installations are not always a straightforward “buy and build” process. Local councils require permits for fences exceeding height thresholds, structures near property boundaries, and anything within pool safety zones governed by AS 1926. If your project sits in a heritage overlay or a bushfire-prone zone, expect additional assessment requirements.

Application fees range from $200 to over $1,500 depending on the municipality and complexity. More importantly, submitting non-compliant product documentation to council will stall your project. We see this constantly — procurement teams source cheap fencing that cannot pass inspection against AS 4687-2022, resulting in rectification orders that cost far more than the original permit fee. Specifying certified product from the outset eliminates this risk entirely.

Site Access Challenges

The quoted panel price assumes a reasonably accessible site. Reality on Australian construction projects is rarely that clean. Sloping terrain, rocky substrates, and restricted access points — narrow laneways, active roadways, multi-level staging areas — all drive labor costs upward.

If post-hole digging hits solid rock and requires specialized augers or rock breaking, you are looking at a 30–50% increase on the installation labor component alone. Restricted access sites may force manual unloading and handling of panels, which slows throughput significantly. When scoping a project, factor in a site survey before finalizing your order quantity and delivery logistics. Ordering pre-assembled panels in standard sizes that match your site conditions reduces on-site modification time.

Waste Removal and Cleanup

Every fencing project generates waste: concrete spoil from post holes, steel offcuts from trimmed pickets or rails, and packaging materials. For bulk imported shipments, this includes timber pallets, plastic wrapping, and steel banding — all of which require proper disposal.

Skip bin hire on Australian construction sites typically runs $300 to $800 depending on bin size and waste classification. Some councils classify contaminated concrete spoil or mixed construction waste as “regulated waste,” which carries higher tipping fees. If your supplier ships panels with minimal and recyclable packaging, this cost is manageable. But if you are dealing with vendors who over-package or use non-standard materials, disposal becomes an unexpected line item that erodes your margin.

Conclusion

For any Australian civil or commercial job, spec the hot-dipped galvanized steel picket fence with a minimum 42-micron coating. Electro-galvanized materials run about 15% cheaper per metre but will fail a coastal site inspection within two years. You pay more upfront for the heavy galvanizing, but non-compliant fencing creates legal liability that costs far more than the material savings.

Before you approve any supplier quote, demand the SGS test report showing the exact zinc coating thickness. Then order a single physical sample panel to verify the weld penetration and pipe wall thickness yourself. Spec sheets lie, but the steel on your loading dock does not.
