The steel tube grade behind a fence panel is the specification buyers see least and lean on most. Two panels with identical mesh, identical dimensions and identical galvanising can carry different tube steels, and the difference shows up years later — in how a weld holds, how a frame survives a load event, and whether the documentation behind the product is worth the paper it is printed on. In Anping’s fence industry, the baseline grade is Q235 structural carbon steel, and the conversation about fence steel tube grade starts there.
DB Fencing manufactures from Anping on ten welding lines with a capacity of up to 2,000 sets per week, and its outdoor fence lines run hot-dip galvanising above 42 microns with ISO 9001 certified manufacture. This guide covers what a tube grade actually is, what Q235 means in practical terms, when a higher specification is worth specifying, and how to read the mill test report that proves any of it — the document that separates a steel claim from a steel fact.
Key Takeaways
- Q235 is the baseline structural carbon steel of the Anping fence industry; the “235” designates its minimum yield strength in megapascals under the Chinese GB standard naming system.
- Grade tells you the steel’s strength ceiling; wall thickness and tube section tell you what the finished fence can carry — the three must be specified together.
- Higher-specification steels earn their premium in load-critical applications, not in ordinary perimeter fencing where Q235 plus correct geometry is the standard build.
- A mill test report (MTR) is the only document that independently records heat number, grade, chemical composition and mechanical properties; ask for it with any order where the grade matters.
- The factory’s measurable commitments: hot-dip galvanising above 42 microns on outdoor lines, up to 2,000 sets per week capacity, and 24-hour quote turnaround.
What a Tube Grade Actually Is
A steel grade is a written promise about the metal’s mechanical behaviour. Two properties do most of the work. Yield strength is the stress at which the steel stops springing back and starts deforming permanently — bend a frame past its yield point and it stays bent. Tensile strength is the stress at which it breaks outright. Between the two sits the working life of a fence. Chemical composition — carbon, manganese and the residual elements — sits underneath both properties and is what the mill controls when it makes the heat.
The grade designation encodes the promise. Under the Chinese GB standard naming system, Q235 reads as Q for structural steel and 235 for its minimum yield strength in megapascals. International buyers meet the equivalents in their own systems: the structural carbon steel grades used in Australia and elsewhere cover a similar strength class, and cross-referencing a Chinese grade to a local standard is a documentation exercise. What matters is that the grade on the drawing is the grade in the tube, and the only proof is the mill’s paperwork.
Q235: The Anping Baseline
Q235 is the workhorse grade of China’s wire mesh and fencing industry, and the default steel behind the standard product ranges that come out of Anping — temporary fence panels, crowd barriers, corral panels and picket fences. It welds readily, it forms without drama, and its strength class is well matched to what perimeter and livestock fencing is asked to do: stand up, stay straight and take the occasional knock. DB Fencing’s own product range shows the pattern — from the heavy-duty 2400×2100mm temporary fence panels in 40mm tube down to the Econo lightweight panels in 3mm tube, the engineering work sits in section sizes and wall thicknesses rather than in exotic steel.
The livestock line illustrates how the specification is built up. The AU galvanised cattle panel runs six 80×40mm oval horizontal rails at 1.6mm wall thickness on a 50×50mm square-post frame — a geometry that delivers its stiffness through section and spacing, with the grade providing a consistent, weldable base underneath. Change the grade and nothing visible changes on the drawing; change the wall thickness and the panel’s behaviour changes immediately. That is the practical hierarchy buyers should hold onto: in ordinary fencing, geometry and gauge do the structural work, and the grade’s job is to be what it claims to be.
When a Higher Specification Earns Its Price
Higher-yield steels earn their premium where the design pushes the material. The honest list is short: structural applications where a thinner wall must carry the same load — weight-saving on logistics-heavy products; high-load attachments where a local point takes concentrated force; and designs that deliberately use higher strength to reduce section size for appearance or wind loading. In each case the higher grade is not a generic upgrade; it is the enabling choice for a specific design decision.
For ordinary perimeter, event and livestock fencing, specifying a higher grade buys little that the fence will ever use. A temporary fence panel’s failure modes are connections and corrosion, not yield — which is why the specification effort in this product class goes into the coating system (hot-dip galvanising above 42 microns on the outdoor lines, a commitment the factory makes and tests) and the weld quality, not into chasing a higher yield number. Our position is blunt: spend the specification budget on coating thickness, wall thickness and weld inspection before spending it on grade, and reserve higher-grade steel for the designs that structurally need it.
Grade, Gauge and Geometry: Specifying All Three
A tube specification is complete only when three dimensions sit on the same line: the grade, the section geometry and the wall thickness. The table below shows how the factory’s own product range builds different fences from the same steel class by varying geometry and gauge.
| Product | Tube specification | Design intent |
|---|---|---|
| Heavy-duty temporary fence panel | 40mm tube diameter, 2400×2100mm panel | Construction site duty in a standard panel size |
| Econo lightweight panel | 3mm tube diameter | Weight and cost reduction for lighter-duty sites |
| AU galvanised cattle panel | Six 80×40mm oval rails at 1.6mm wall, 50×50mm square frame posts | Livestock pressure taken on rail geometry, not exotic steel |
| Maxi Panel | 3300×2100mm panel format | Fewer panels per metre of run on large sites |

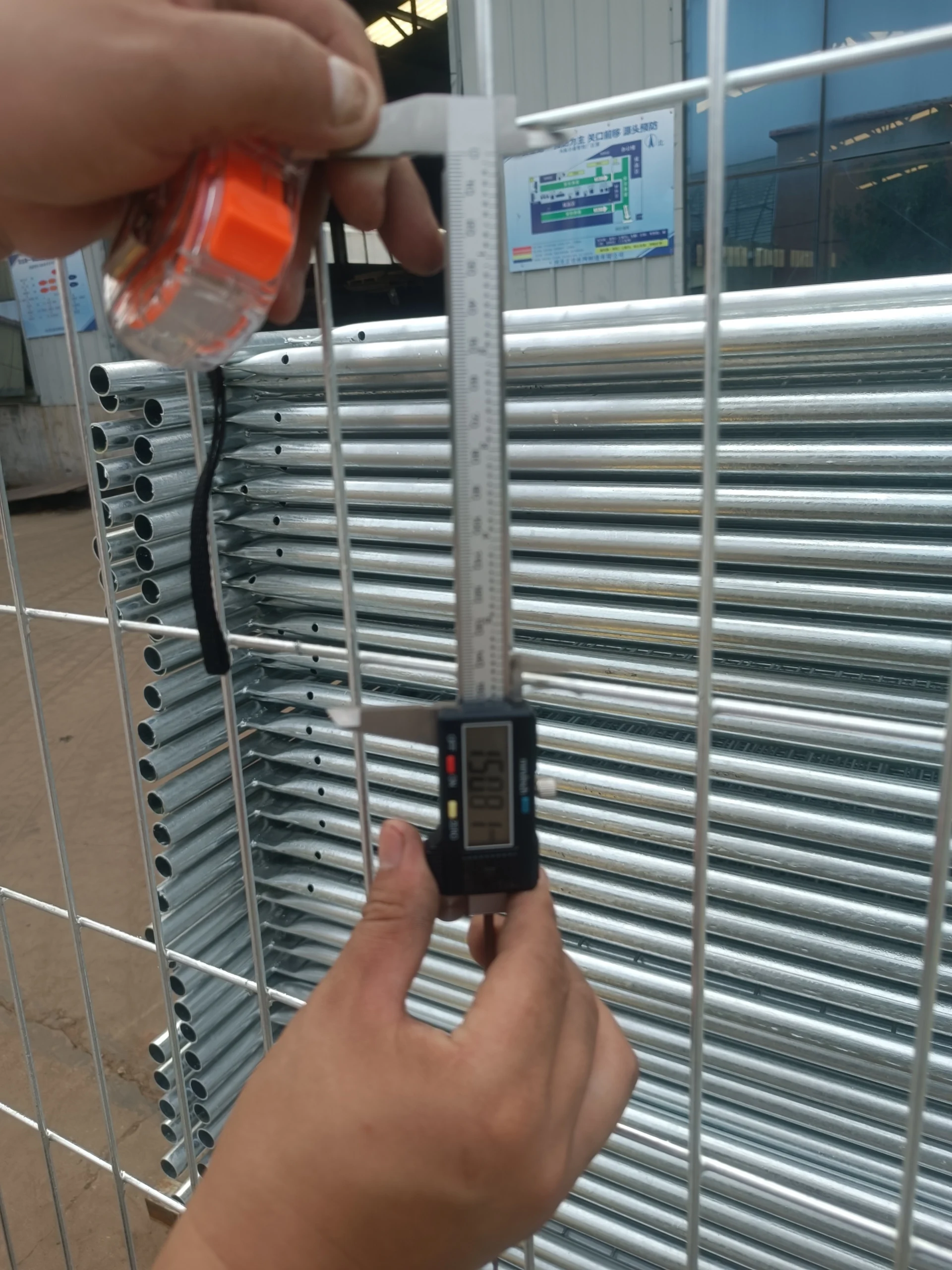

Read the table as a specification method rather than a catalogue. Each row achieves its purpose by combining a steel class with a deliberate tube geometry, and any row rebuilt with a thinner wall or a smaller section becomes a different product — regardless of what grade it carries. When you specify, write all three onto the drawing: grade, section and wall. When you inspect, measure what you can measure — the factory’s quality control process uses digital calipers to verify tube dimensions on the production floor, which is the practical check that the delivered tube matches the ordered tube.
Reading a Mill Test Report
A mill test report — the MTR, also called a mill certificate — is the steel mill’s record for the heat your tube was drawn from, and it is the document that makes a grade claim verifiable. A complete report carries the heat number (the identifier that ties your tube back to a specific melt), the grade, the chemical composition of that heat, and the mechanical test results — yield and tensile figures that should sit at or above the grade’s minimums. The chain of custody matters: the tube maker buys coils against the mill’s certificate, and the fence factory buys tube against the tube maker’s.
Three checks make the document useful rather than decorative. First, match the heat number on the MTR to the marking on the delivered tube bundle — the report is only about the steel it identifies. Second, read the yield and tensile results against the grade minimums; a result below minimum on either is a rejection, not a rounding error. Third, check that the report’s product form matches what you bought — a certificate for plate steel says nothing about the tube in your panels. Where an order’s engineering justifies it, buyers can also arrange third-party inspection before dispatch, and the factory’s ISO 9001 certified manufacture covers the process discipline behind the paperwork. For the adjacent specification questions — what coating thickness to demand and how to inspect welds — the hot-dip versus pre-galvanised comparison and the weld inspection guide on this site carry the detail.
Frequently Asked Questions
Is Q235 good enough for temporary fencing?
Yes — it is the standard grade for this product class in Anping, China’s wire mesh manufacturing hub. Temporary fence panels are engineered around tube section, wall thickness and coating, and Q235 provides a weldable, consistent strength base for those geometries. Higher grades earn their price in load-critical designs, not in ordinary perimeter fencing.
What does the 235 in Q235 mean?
Under the Chinese GB standard naming system, Q designates structural steel and the number is the minimum yield strength in megapascals. Q235 therefore promises a minimum yield strength of 235 MPa — the stress level above which the steel deforms permanently instead of springing back.
Should I ask for a mill test report with every order?
Ask whenever the grade matters to the design or to your own compliance chain — structural applications, engineered installations, or any buyer whose inspectors require traceable documentation. For commodity panels where geometry and coating carry the specification, the MTR is still the cleanest evidence a supplier can offer; make it part of the order conversation rather than an afterthought.
Does a higher steel grade make a fence last longer outdoors?
Not by itself. Outdoor lifespan is dominated by corrosion protection — the hot-dip galvanised lines specify above 42 microns for exactly that reason — and by weld integrity. A higher-yield steel with a thin coating fails before a baseline steel with a thick one, so spend the specification budget on coating and wall thickness first.
Conclusion
Fence steel tube grade is one leg of a three-legged specification: grade, section geometry and wall thickness, each written on the drawing and each doing different work. Q235 is the proven baseline of the Anping fencing industry, higher grades pay their way only in designs that structurally need them, and the mill test report is what turns a grade claim into evidence. Put the remaining specification effort where the failures actually happen — coating thickness and weld quality.
When you are ready to specify, put grade, tube section and wall thickness on one drawing line and pair it with the weld inspection checklist — the factory quotes within 24 hours and can supply the documentation chain your inspectors require.
