A fence panel is mostly welds. Every point where a vertical wire crosses a horizontal one is a joint; every corner where frame tube meets frame tube is a joint; every foot plate and gate hinge is held on by joints. Fence panel weld quality is therefore not a line item on the spec sheet — it is the spec sheet, because the tube grade, mesh gauge and coating only perform if the joints holding them together hold too.
This guide covers the two weld families in a typical panel — spot welds at the mesh and full-seam welds on the frame — and the inspection methods a buyer or site supervisor can run with a clipboard. It is written from the production side: DB Fencing welds panels on 10 production lines with output up to 2,000 sets per week, so weld quality is a process question we live with daily, not a brochure claim.
Key takeaways
- Two weld families, two jobs: spot (resistance) welds join mesh wires at their intersections; full-seam welds join frame tubes at corners and load-bearing joints.
- Misplaced welds fail differently: a failed spot weld drops a wire; a failed frame seam drops a panel — inspect the frame first.
- Weld before galvanising, not after: on hot-dip panels the finished weld goes into the kettle, so the coating seals the weld zone — the route behind coatings above 42 microns on AS 4687 temporary fencing.
- Pre-galvanised tube is different: welding burns the mill zinc off the joint, so pre-galvanised panels need the weld zone protected afterwards.
- Visual inspection catches most defects: missed welds, pinholes, burn-through and spatter are all visible — if you know where to look and sample systematically.
What Each Weld Family Does
Spot welds — resistance welds — are the joints at every mesh intersection. Two wires are clamped between electrodes and a current pulse fuses them at the contact point, producing a small, consistent nugget. Done well, the process is fast, uniform and ideal for the hundreds of intersections on a welded mesh panel; done badly, electrode pressure or current drifts, and the nugget is undersized or missing. The failure mode is a wire that works loose — an eyesore first, a climbable gap later.
Full-seam welds — continuous welds — are the structural joints: frame corners, the joints between frame and mesh border, foot plates and brace connections. These carry the loads the panel exists to resist: a person climbing, wind loading across the sheet, stock leaning on the rail. A seam with pinholes or incomplete fusion may look finished on delivery and fail at the first real load — and the failure mode is not a loose wire; it is a panel that folds.
Inspect the frame seams before the mesh spots. A missed spot weld degrades a panel; a missed frame seam disqualifies it.
How Panels Are Actually Welded

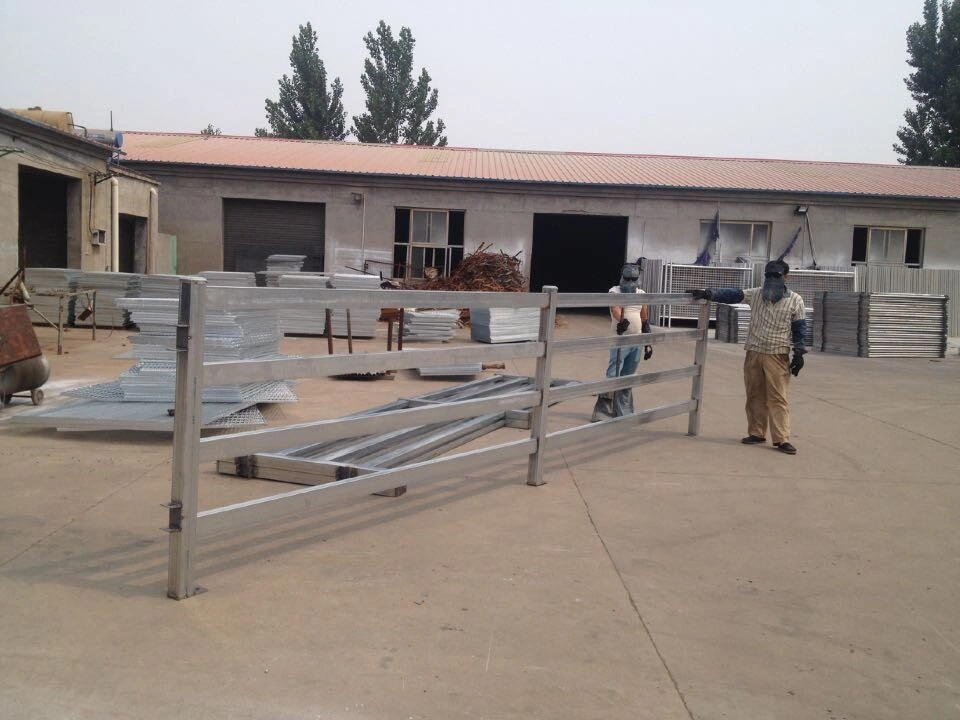

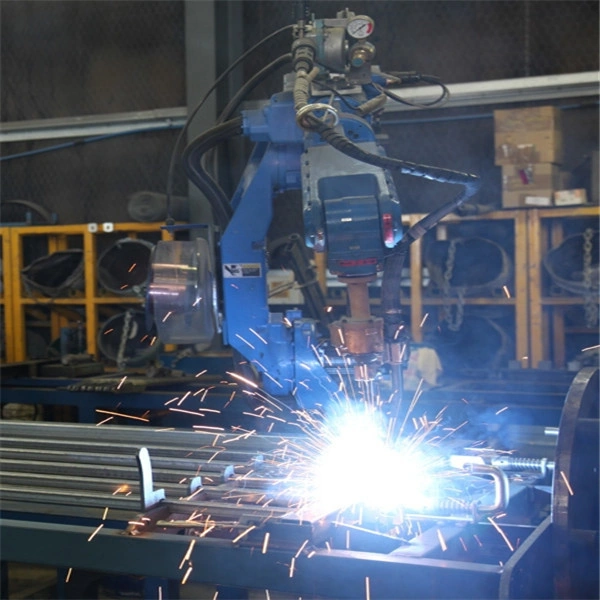

In a production environment, weld quality is a machine-and-process property, not a craftsman’s mood. Mesh panels are welded on dedicated lines — automated or semi-automated welding machines that set current, pressure and time per joint, batch after batch. Frame fabrication runs as a separate step: tube is cut, notched and welded into the rectangular frame, then the mesh sheet is welded or clamped into it. Ten production lines running up to 2,000 sets per week stay consistent because the machine settings, not the operator’s judgement, decide the weld.
For buyers, that translates into two audit questions. First: is the mesh welded on a machine line or by hand? Machine-welded mesh has uniform nugget patterns — look for the rhythm; hand-tacked mesh does not. Second: are the frame corners welded full-seam or merely tack-welded? A tack weld is a positioning aid, not a joint. Corners finished with a continuous seam around the profile are the spec; corners with four coin-sized tacks are a cost saving you will meet again in the wind.
Welds and Galvanising: The Order Matters
Fence panels take one of two routes to corrosion protection, and each treats welds differently. On the hot-dip route, the panel is welded first and the finished assembly goes into the zinc kettle — every weld, cut end and bare spot gets immersed, and the coating forms over the weld zone as part of the metallurgical bond. For temporary fencing supplied to Australian standards, this is the route behind the specification buyers should demand in writing: hot-dip galvanising above 42 microns on panels compliant with AS 4687.
On the pre-galvanised route, the tube arrives from the mill already zinc-coated, and welding happens afterwards. The heat of the arc burns the mill zinc off the joint, leaving the weld zone bare steel unless it is re-protected — typically with a zinc-rich repair coating. That is why pre-galvanised panels live and die by the quality of their weld-zone touch-up: every joint is a spot where the corrosion protection has to be rebuilt by hand. Our comparison of hot-dip and pre-galvanised fence steel covers the coating side of this decision in depth.
The inspection consequence: on hot-dip panels, look for continuous coating across the weld (a slightly built-up texture over the seam is normal); on pre-galvanised panels, look at the weld zones for missed touch-up, because that is where rust starts.
On-Site Inspection Method One: The Visual Pass
Most weld defects announce themselves visually. Work through a panel zone by zone — frame corners first, then the mesh-to-frame border, then the mesh field, then the accessory welds (feet plates, brace lugs, hinge lugs). You are looking for five things:
- Missed welds: an intersection or corner with no nugget or seam at all — count them; a pattern of misses means machine setup drift, not chance.
- Pinholes and porosity: small holes or pores along a seam, usually from contamination or rushed technique; each is a stress riser and a corrosion entry point.
- Burn-through: holes blown in thin material where the arc penetrated — the weld exists but the parent metal does not.
- Excessive spatter: balls of weld metal scattered around the joint — cosmetic mostly, but heavy spatter usually travels with rushed parameters.
- Undercut: a groove gouged into the tube alongside the seam, thinning the parent metal exactly where the load path runs.
Run the visual pass in daylight, panel flat on the stack if possible. Ten unhurried minutes on a sample of panels tells you whether the batch was made on a disciplined line or a bad week.
On-Site Inspection Method Two: The Physical Test
Visual inspection finds defects; physical testing finds weakness. The classic field test for a spot-welded mesh intersection is the chisel or twist test on a sample panel or an offcut: lever the chisel point between the two wires at the joint, or grip the crossing wires with two wrenches and twist. A sound spot weld holds and the wire deforms around it; a weak weld shears or tears out with modest force. Test a handful of intersections across the panel — corners, centre, edges — because electrode drift shows up as a gradient across the sheet.
For frame seams, the field equivalent is load, not levers: stand the panel, apply firm lateral pressure at the top corner, and watch the corner joints for movement or creaking. A full-seam corner is rigid; a tack-welded corner flexes. It is a screening test, not a structural qualification — but it separates the “welded” from the “arranged” reliably enough for a delivery inspection.
If the order justifies it, the same logic extends to third-party mechanical testing — pull tests, sectioned welds examined for fusion — as part of pre-shipment QC. The field tests above are the version you can run the morning the container is unloaded.
On-Site Inspection Method Three: The Sampling Plan
Nobody inspects every weld on 500 panels, and nobody needs to. Weld defects cluster by production run: the settings that produced Monday’s panels produced all of Monday’s panels. So sample by run, not by container: pull a fixed number of panels from different bundles (bundles usually correspond to production batches), run the visual pass on each, and the physical test on one or two. If every sampled panel from a bundle is clean, the bundle is clean. If one shows a systematic defect — a row of missed spots down one edge, corners with pinholes — inspect that bundle fully.
Two timing rules make the sampling plan worth having. First, inspect on arrival: defects in the stack are a warranty conversation while the goods are still the supplier’s problem; defects found during installation are your delay. Second, record what you find — bundle, defect type, count — because a documented defect report is what triggers a factory response, and a pattern across batches is exactly the machine-drift evidence a manufacturer needs to fix the line. For coated panels, our guide to powder coating quality tests applies the same sampling discipline to the coating.
Frequently Asked Questions
Are spot welds weaker than full-seam welds?
They do different jobs. Spot welds carry the mesh’s local loads and, done correctly, outlast the wire around them; full-seam welds carry the frame’s structural loads. Compare welds within their job, not across jobs.
What is the fastest check on a delivery of panels?
Sample a few panels from different bundles and inspect frame corners first — full seams, no pinholes, no tacks posing as joints — then scan the mesh field for missed spots. Ten minutes per sample.
Why do welds rust first on some panels?
On pre-galvanised panels, welding burns the mill zinc off the joint, leaving bare steel that must be re-protected with zinc-rich touch-up. Missed touch-up means the weld is the first rust. Hot-dip panels immerse the finished weld in zinc, so the weld zone is coated with everything else.
Can weld quality be specified in the purchase order?
Yes — write it: full-seam frame corners, machine-welded mesh intersections, hot-dip galvanising above 42 microns on AS 4687-compliant temporary fencing, and a pre-shipment inspection against the approved sample.
Conclusion
Weld quality decides whether a panel’s specification survives contact with a load. The frame seams carry the structure, the spot welds carry the mesh, and the galvanising route decides whether the weld zone is protected by immersion or patched by hand. A ten-minute sampled visual pass on arrival — corners first — catches most of what matters, while the goods are still the supplier’s problem.
Specify the welds in writing, inspect the delivery against the sample, and hold the balance payment until the inspection passes. To see machine-welded production at volume, start a factory-direct conversation — quotes, including weld specification, come back within 24 hours.
