Hot-Dip Galvanizing vs. Powder Coating: Choosing the Right Corrosion Protection for Steel Fencing
Are your steel fences losing the battle against rust, demanding constant maintenance, or failing prematurely? The coating you choose is the single most important factor in the long-term durability and economic performance of your investment. Too often, decision-makers compare hot-dip galvanizing and powder coating as simple alternatives, overlooking their unique strengths, their powerful synergy in duplex coating systems, and their respective environmental footprints.
This analysis goes beyond a surface-level glance. We’ll dive deep into the science behind these premier corrosion protection technologies, dissect performance data, and illuminate the path to superior weather-resistant fencing. Get ready to explore the critical nuances of lifecycle costs, sustainability, and the strategic application of these methods to ensure your steel fabrication stands strong against the elements for decades to come.
The Foundation of Durability: How Hot-Dip Galvanizing Works
Hot-dip galvanizing isn’t just a paint job; it’s a chemical transformation. By creating a metallurgically bonded zinc coating, it provides an armored shield and an active, self-healing defense against rust, making it the go-to for long-term steel corrosion protection.
The Submersion Secret: The Galvanizing Process Explained
At its core, hot-dip galvanizing is an immersion process. Fabricated steel is submerged in a galvanizing kettle filled with molten zinc, heated to about 840°F (450°C). This triggers a metallurgical reaction between the iron in the steel and the zinc, forming a series of tough, distinct zinc-iron alloy layers. These layers are fused to the steel, topped with a final outer layer of pure zinc.
This creates more than a simple barrier. Hot-dip galvanizing delivers sacrificial protection, also known as cathodic protection. If the zinc coating gets scratched deep enough to expose the steel, the surrounding zinc corrodes first, “sacrificing” itself to protect the base metal. This self-healing property ensures continuous metal corrosion protection. The molten zinc bath also ensures a complete, uniform coating over every surface, including tricky corners, sharp edges, and internal hollows.
Built to Last: Performance in Demanding Environments
Over time, a hot-dip galvanized coating develops a ‘patina’ of stable zinc carbonates on its surface. This tough, inert layer further seals the steel from the elements, enhancing its longevity. These zinc coatings are also exceptionally tough, offering excellent resistance to scratches and impacts. Minor damage is often inconsequential due to the sacrificial nature of the coating.
One of the key benefits is that coating thickness can be precisely specified to match environmental conditions, from mild C1 inland zones to severe CX coastal regions as defined by ISO 9223. Real-world case studies of hot-dip galvanized structural steel, from historic fences to industrial infrastructure, frequently show service lives exceeding 50-70 years, even in tough climates, proving its enduring value.
| Standard (e.g., ASTM A123) | Minimum Coating Thickness (µm) | Environment Type (ISO 9223 Category) | Predicted Service Life (Years) |
|---|---|---|---|
| A123 (Structural Steel) | 85 | C1 (Very Low, e.g., Dry Inland) | >70 |
| A123 (Pipe) | 45 | C3 (Medium, e.g., Urban, Industrial) | 20-40 |
| A123 (Plate) | 65 | C4 (High, e.g., Industrial, Coastal) | 10-20 |
| A123 (Rebar) | 100 | C5 (Very High, e.g., Offshore, Heavy Industrial) | 5-15 |

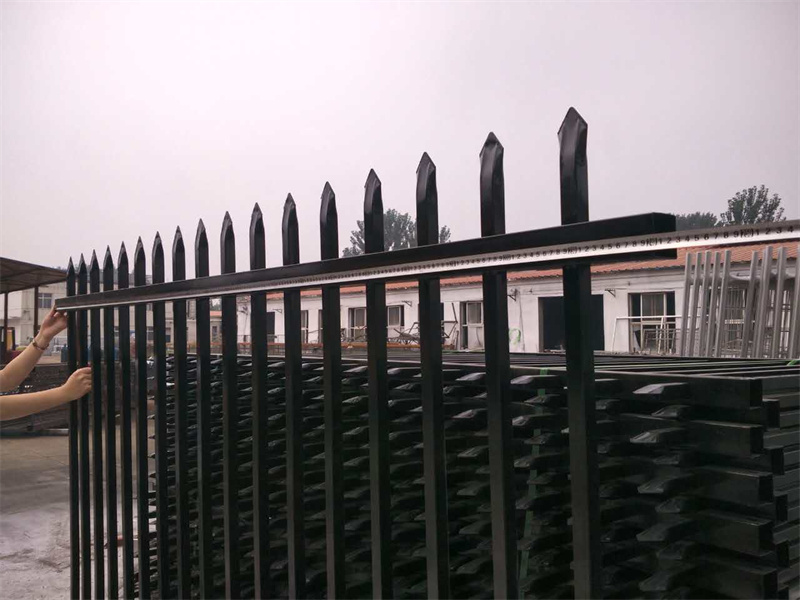

The Aesthetic Shield: Exploring Powder Coating Technology
Powder coating delivers a tough, beautiful finish. It’s an electrostatic process that wraps steel in a durable polymer barrier, offering a massive color palette and excellent finish quality for a clean, modern look.

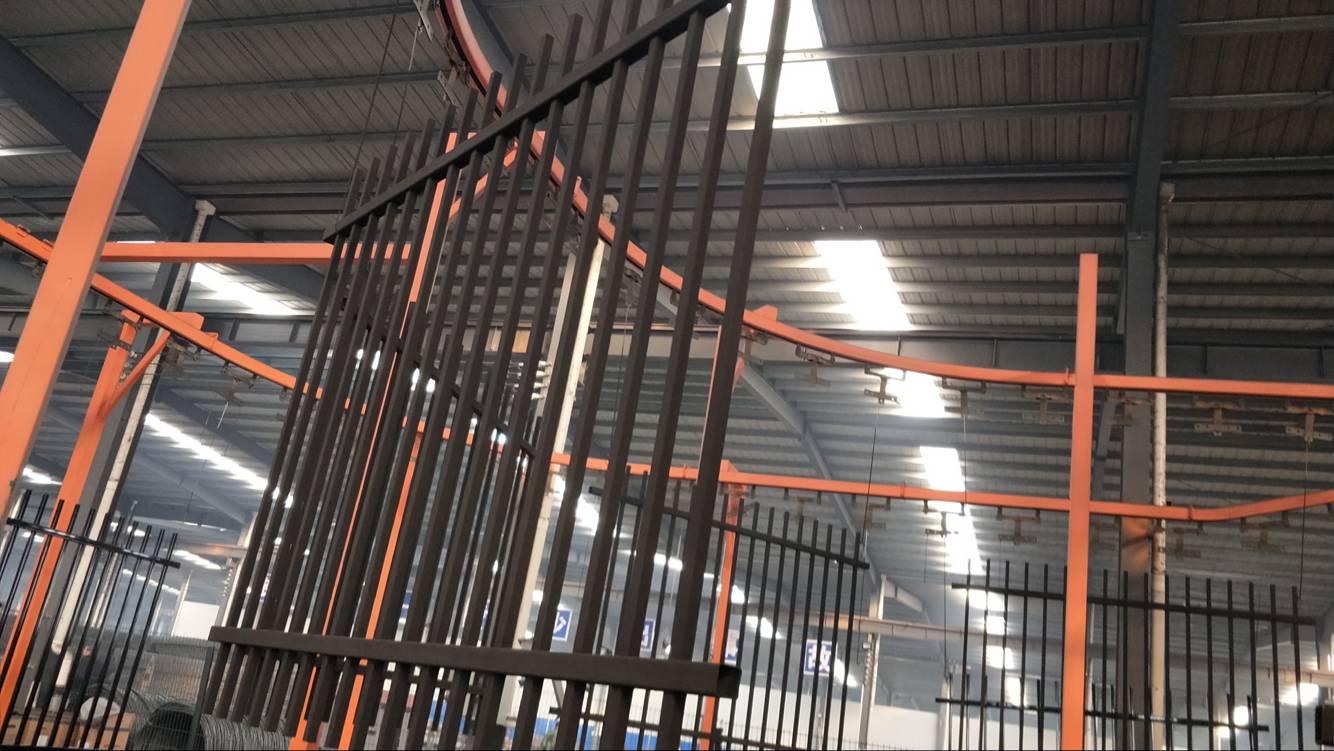

The Electrostatic Embrace: The Powder Coating Process
The success of powder coating hinges on meticulous surface preparation. The steel must be thoroughly cleaned and pre-treated, often with a phosphate conversion coating, to guarantee the powder adheres perfectly. Once prepped, a fine powder made of resin, pigment, and curing agents is applied using an electrostatic spray gun. The charged powder particles are drawn to the grounded steel fence, creating a smooth, even layer.
The final step is curing. The coated fence is moved into a high-temperature oven, where the powder melts, flows, and cross-links into a continuous, hard-wearing polymer film. This electrostatic powder coating process opens the door to an almost limitless range of colors, textures (from smooth to wrinkled), and gloss levels, providing huge aesthetic versatility for powder coated fencing projects.
Barrier Brilliance: How Powder Coating Protects
The primary job of powder coating is to form an impenetrable physical barrier. This layer isolates the steel from corrosive agents like moisture, salt, and oxygen. One of the main powder coating benefits is its excellent resistance to UV rays, chemicals, and abrasion, making it a reliable choice for a wide variety of applications.
However, its strength is also its weakness. A deep scratch that breaches the barrier can allow corrosion to creep underneath, a process known as “undercutting.” Environmentally, powder coating is a responsible choice. The process is free of Volatile Organic Compounds (VOCs), a significant advantage over many traditional liquid paints that release harmful solvents into the atmosphere.
| Coating Type | Strengths | Weaknesses | Common Applications for Fencing |
|---|---|---|---|
| Polyester (TGIC & TGIC-Free) | Excellent UV resistance, great weatherability, wide color range. | Moderate chemical resistance; softer than epoxies. | Outdoor fences, residential, commercial, gates. |
| Epoxy | Superior corrosion and chemical resistance, excellent hardness. | Poor UV stability (chalks and fades in direct sunlight). | Indoor use, industrial machinery, or as a primer in duplex systems. |
| Hybrid (Polyester-Epoxy) | Good balance of UV stability & corrosion resistance, very smooth finish. | Not as UV-resistant as pure polyester; not as tough as pure epoxy. | General-purpose outdoor fencing, gates, light industrial settings. |
Quality Metal Fences Made for Your Project
Since 2009, DB Fencing has supplied durable and certified metal fences directly from our factory in China. Benefit from fast sample delivery, expert support, and competitive prices designed for international buyers.
The Synergy Solution: Duplex Coating Systems
Why choose one when you can have both? A duplex system puts a tough powder coat over a galvanized base, creating a synergistic defense that’s far more durable than either coating alone. It’s the ultimate combination of brute strength and aesthetic flexibility.
Unlocking Peak Performance: The Duplex Advantage
Duplex coating systems offer a “best of both worlds” strategy, uniting the rugged, sacrificial protection of hot-dip galvanizing with the aesthetic range and barrier defense of powder coating. This combination creates a powerful synergistic effect: the total lifespan of the duplex system can be 1.5 to 2.3 times longer than the sum of the individual coating lifespans. The galvanizing protects the steel, and the powder coat protects the galvanizing, creating a multi-layered defense.
Successful duplex coating systems over galvanizing require impeccable process control. The key is preparing the galvanized surface correctly before powder coating, typically using methods like sweep blasting or a chemical pre-treatment, while avoiding chromate quenching. This ensures the two layers bond perfectly. These systems are ideal for high-value projects where aesthetics and extreme durability are non-negotiable, such as architectural landmarks and marine environment fencing protection.
Critical Factors for Flawless Duplex Performance
Achieving optimal results with duplex systems depends on a few key factors. The chemistry of the steel itself—especially its silicon and phosphorus content—can affect the underlying galvanized coating. Proper welding procedures before galvanizing are also essential to avoid defects. Attention to these details during steel fabrication minimizes weak points where corrosion could start.
Common failure points we see in the field include poor edge coverage and delamination between the two coats, almost always caused by improper surface preparation. Repair strategies must address both the outer powder coat and the underlying zinc layer. You’ll find duplex-protected fencing in the most demanding environments: coastal promenades, industrial facilities, and high-traffic public venues where failure is not an option.
| Feature | Standalone Hot-Dip Galvanizing | Standalone Powder Coating | Duplex System (HDG + Powder Coating) |
|---|---|---|---|
| Initial Cost | Moderate to High | Low to Moderate | Highest |
| Long-Term Cost (Maintenance/Replacement) | Very Low | Moderate to High | Lowest |
| Expected Lifespan (Mild Environment) | 50-70 years | 10-20 years | 70-100+ years |
| Aesthetic Range | Limited (matte gray, spangled) | Vast (colors, textures, gloss levels) | Vast (durability of HDG with aesthetics of PC) |
| Primary Protection Mechanism | Sacrificial & Barrier | Barrier | Sacrificial & Enhanced Barrier |
| Suitability for Harsh Climates | Excellent | Fair (needs intact barrier) | Superior |
The Economic Equation: Lifecycle Costs vs. Upfront Price
Don’t get fooled by the initial price tag. True cost is measured over decades. A smart upfront investment in a superior corrosion-resistant steel coating like galvanizing delivers massive long-term savings by slashing future maintenance and replacement expenses.
Beyond the Initial Invoice: Calculating True Lifecycle Cost
Calculating the true lifecycle cost for fencing means looking far beyond the initial quote for materials and application. The real financial picture includes long-term expenses: maintenance, repairs, and eventual replacement. The durability of the coating, the severity of the environment, and the complexity of the structure all influence these costs over decades.
The return on investment (ROI) for robust weather resistance systems becomes crystal clear when you tally up the avoided costs of rust remediation, aesthetic decline, and premature structural failure. Investing more upfront for a superior coating almost always results in substantial savings over the asset’s operational lifespan.
The Real Price of Rust: Understanding Hidden Expenses
The cost of corrosion isn’t just about paying for repairs. Indirect costs can be even more significant, including diminished property value from aesthetic degradation and serious safety risks if structural integrity is compromised. A proactive approach, using performance data to plan maintenance, helps manage budgets and prevents costly surprises.
For steel fencing, the economic case is stark. Neglecting a robust initial coating can slash the service life by two-thirds and drive up maintenance costs by over 50% over time. This makes a powerful argument for choosing durable, long-lasting finishing from the start.
| Cost Category | Painted Carbon Steel | Powder-Coated Steel | Hot-Dip Galvanized Steel | Duplex-Coated Steel |
|---|---|---|---|---|
| Initial Cost (100 units) | $100 | $120 | $150 | $200 |
| Maintenance & Recoating | $200+ (recoat every 5-7 yrs) | $80 (touch-ups) | $5 (inspection only) | $0 |
| Replacement Cost (within 50 yrs) | $300+ (2-3 replacements) | $120 (1 replacement) | $0 | $0 |
| Total Estimated 50-Year Cost | ~$600 | ~$320 | ~$175 | ~$200 |
Spec It Right: Choosing the Best Protection for Your Project
The best coating is the one that’s right for the job. Matching the protection system to the specific climate and application is the key to balancing performance, aesthetics, and budget for maximum value.
Let the Environment Be Your Guide

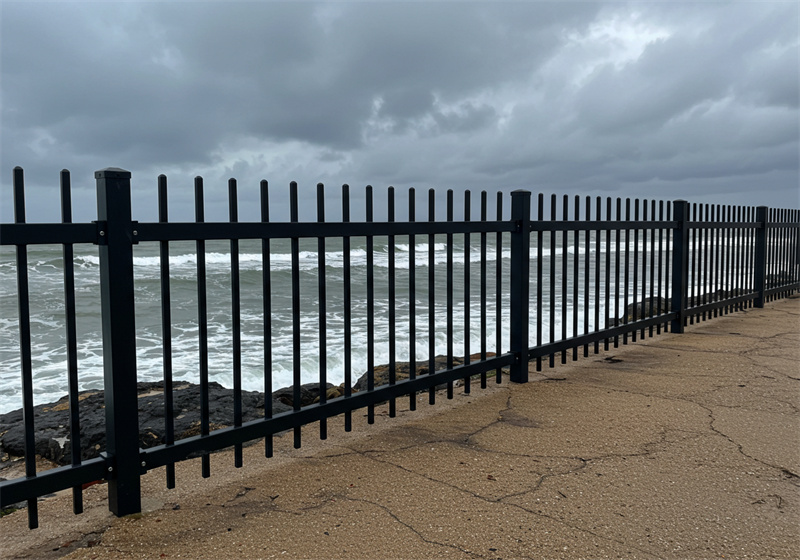

Specifying the right steel fence corrosion protection methods starts with the environment. For marine and coastal areas with high salinity, a duplex system or, at minimum, a thick hot-dip galvanized coating is the only viable long-term solution. Industrial and urban zones, with their mix of pollution and potential for physical damage, demand coatings that resist abrasion and chemicals.
In less aggressive rural and residential settings, the decision often comes down to balancing durability with aesthetics and cost. Powder coated fencing offers a wide range of looks, while hot-dip galvanizing provides a “set it and forget it” low-maintenance solution. A thorough understanding of the environmental stressors is the first step in any good industrial coating systems comparison.
Quality Metal Fences Made for Your Project
Since 2009, DB Fencing has supplied durable and certified metal fences directly from our factory in China. Benefit from fast sample delivery, expert support, and competitive prices designed for international buyers.
Frequently Asked Questions (FAQ)
Q1: What’s the main difference between how galvanizing and powder coating protect steel?
Hot-dip galvanizing offers both a physical barrier and active sacrificial protection—the zinc corrodes to save the steel. Powder coating is purely a barrier system, sealing the steel from the elements. If that barrier is breached, corrosion can begin.
Q2: Can you powder coat over galvanized steel?
Absolutely. This is called a “duplex system.” It requires specific surface preparation, like sweep abrasive blasting or chemical treatment, to ensure the powder coat bonds securely to the zinc layer.
Q3: Which coating is better for harsh coastal environments?
For long-term protection in marine environments, hot-dip galvanizing is superior due to its sacrificial action. For the absolute best performance, a duplex system (powder coating over galvanizing) is the top-tier specification.
Q4: Is hot-dip galvanizing always more expensive upfront?
Generally, yes, but not always. The initial cost for hot-dip galvanizing is often higher due to the industrial process involved. However, this is typically recouped many times over through dramatically lower lifecycle costs, as it eliminates the need for future maintenance and replacement.
Q5: How does the steel’s chemistry affect the galvanizing outcome?
The steel’s composition, specifically the levels of silicon and phosphorus, heavily influences the galvanized coating’s thickness and appearance. High-silicon steel, for example, can result in a thicker, matte gray, and sometimes more brittle coating. A good galvanizer will ask for the steel chemistry to adjust their process accordingly.
Q6: Can you repair a damaged coating on a fence?
Yes. Damaged galvanized coatings can be repaired in the field using zinc-rich paints that restore sacrificial protection. Powder coating damage can be addressed with liquid touch-up paints, though perfectly matching the original factory finish can be difficult.
Q7: Are these coating processes environmentally responsible?
Both are significant improvements over traditional high-VOC liquid painting. Powder coating is VOC-free. Hot-dip galvanizing uses natural, infinitely recyclable elements (zinc and steel) and creates incredibly long-lasting products, which reduces overall resource consumption by minimizing replacements.
Q8: What are the key design considerations before hot-dip galvanizing?
Proper design is critical. Following a hot-dip galvanizing design guide is essential. Key considerations include ensuring proper venting and drainage for hollow sections so that molten zinc and cleaning solutions can flow freely, preventing air pockets and potential explosions.
