Product Overview:

DB Fencing offers premium-quality Hesco Barriers, designed to provide unparalleled protection in military, environmental, and emergency scenarios. These barriers are extensively used for defense against blasts, controlling floods, and creating secure perimeters in volatile environments. With a durable zinc-coated steel welded mesh and a non-woven geotextile lining, our Hesco Barriers are recognized for their quick deployment, robust performance, and adaptability.

Style and Specifications:

The Hesco Barrier, also known as a defensive bastion or gabion barrier, is a prefabricated multi-cellular system designed to offer exceptional protection. The barrier is available in a range of specifications to suit different operational needs:

Technical Specifications for Barrier Panels:

• Steel Wire Composition: 0.1% carbon max steel
• Wire Thickness: 3.5mm to 5.0mm
• Wire Tensile Strength: 500-800 Mpa
• Welding Tensile Strength: 50-100% of wire tensile strength
• Mesh Size: 76.2×76.2mm or 100×100mm
• Surface Treatment: Zinc coating or Zinc-Al coating (40-600g/sqm)

Technical Specifications for Geotextile Fabric:

• Available Colors: Beige sand, Olive green, Grey
• Mass: 250g/sqm, 300g/sqm, 350g/sqm
• Tensile Strength: 16KN
• Tear Strength: 0.42KN
• CBR Puncture Strength: 3.0KN
• UV Strength Retention (ASTM D4355):
  • 50% at 500 hours (5 years use life in common environments)
  • 70% at 500 hours (10 years use life in common environments)

Features:

• Rapid Deployment: Capable of deploying over 1000 feet of MIL units in under 60 seconds with minimal logistical support.
• High Resistance: Effective protection against high explosives, shaped charges, RPG-7 thermobaric warheads, and various caliber weapon systems.
• Durability: Withstands up to 50MPH vehicle crashes and artillery attacks.
• Customizable: Units can be configured and extended to meet specific operational needs.

Applications:

• Environmental Barriers: Effective for emergency flood protection and long-term wetland restoration.
• Defensive Barriers: Provides secure protection for military personnel and critical infrastructure in conflict zones.
• Protective Barriers: Creates secure bunkers and accommodation for civilian or military use.
• Aesthetic Security: Rockface variants offer a visually pleasing solution for customer-facing perimeter security.

Installation:

The Hesco Barriers are easily installed using basic tools and manpower. Units can be extended by joining with provided pins and filled with locally available materials such as sand, gravel, or soil. This turns the barrier into a sturdy defense structure that can be quickly erected and dismantled as needed.

Advantages of DB Fencing Hesco Barrier:

• Superior Quality: Adheres to international standards with ISO, CE, BV, and SGS certifications.
• Competitive Pricing: High-quality products offered at competitive rates.
• Professional Support: Expert customer service to assist with specific project requirements.
• Efficient Delivery: Optimized logistics ensure timely delivery of products worldwide.

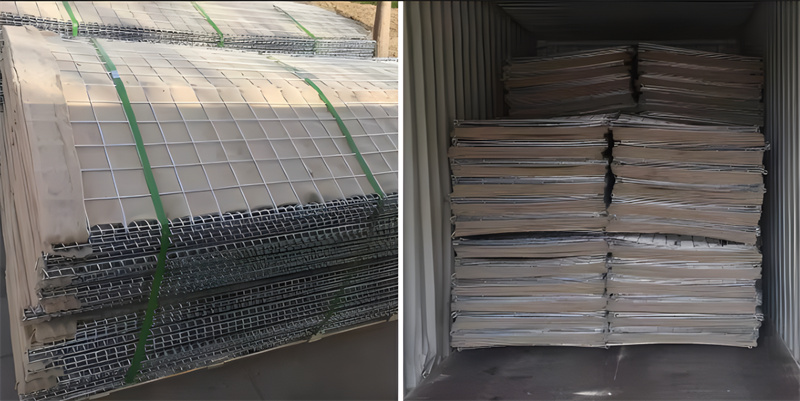

Packaging:

1. Wrapped with shrink film, packed on a pallet, and secured with steel belts to prevent damage during transportation.
2. Custom packaging options are available based on customer needs.

Why Choose DB Fencing?

DB Fencing is a trusted supplier for UN projects and global defense needs. Our Hesco Barriers provide essential protection with quick deployment, high durability, and customizable configurations, making them an ideal solution for military, environmental, and emergency applications.
