Galvanised Temp Fence Panels China Wholesale

Galvanised Temp Fence Panels 240 x 210cm In Building Site

The 240 x 210cm econo 3mm galvanised temp fence panel complies with Australian Standard AS4687-2007 when installed with feet and clamps. The lighter temporary fence panel consists of Φ3.0mm wire diameter, 60 x 150mm anti-climb mesh aperture, and Φ32 O.D. frame tube with 1.3mm wall thick, 2100mm high, All panel is pre-galvanised or hot dipped galvanised, hand full welded, then paint silver. It is easy to install because of panel weight 13kgs for worker.

Because of large quantities production everyday with 10 welding platform since 2009, the temporary fence prices are much competitive.

When you in Australia or New Zealand, you can see Australian temporary fence Brisbane, temporary fencing perth, temporary fencing adelaide, temporary fencing melbourne

1. 3.0mm Galvanised Steel Fence Panels Specifications

Our Concerns

Temporary Fence Panels - Each Horizontal wire is full hand welded onto the Mid-frame tube by twice, and vertical wire every 2 welded joints by twice to make the panel more strong and optimum strength.
In order to supply better price competitive, we bring in the Blow mould machine to produce

Feet - From the HDPE color, Color master batch, and UV additive, including the production wastage, we keep eyes on every details to make good design and quality.
When concrete filled, we control the special rate with sand and concrete to match the weight of 26.5-28kgs, and clear the surface of feet.

Description Details

Design	Australia & New Zealand
Made	China
1) Panel Specification
Panel Size	2400mm(L) x 2100mm(H)
Frame	32mm O.D. & 1.3mm Wall Thickness Galvanised to NZ standard 42 Microns
Infill Mesh	3.0mm horizontal, 3.0mm vertical 150mm x 60mm spacing
Treatment	Pre-Galvanised pipe and panel welded,then galvanized spraying
Standard	AS&NZ 4687-2007
Weight/Panel	13kgs
2) Plastic Temporary Fence Feet Specification
Material	Manufactured in high-density polyethylene 610 x 230 x 150mm
Treatment	UV2002, UV531 , BASF and UV770 treatment for anti-color-fading and sun protection , also outdoor use. The flexible & durable feet can last 3-5 years.
Color	Orange, Blue or Red, Green
Infill material	Filled in AUS&NZ with 30 mpa Concrete & 10mm chip
Infill concrete weight	26.5-28kg
3) Clamp Specification
Size	Specially moulded 4.0mm wall thickness for additional strength, 75mm, 80mm, 90mm, 100mm hole spacing(C/C)
Treatment	Hot Dipped Galvanised
Weight	0.42kg /set ( 2 pieces clips with 1 bolt and 1 nut)

4) Stays
1.5m or 1.8m height alternative, 32 x 1.3mm tube with 600 x 290 x 6.0mm steel plate full welded
Hot Dipped Galvanized to Australian Standard–42 Microns
Specially installed in very high winds.
Each Stay requires 2 Clamps and 2 Plastic Feet
5) Packing	In Steel Pallet
Qty In1x40’HC	550 sets ( 1 panel + 1 foot with concrete + 1 clamp with bolt and nut)

6) Shipping Time	15-20 days for 1 x 40’HC after receiving the deposit;

Panels Without Inner Brace

Filled With Water

Steel Clamps Installed

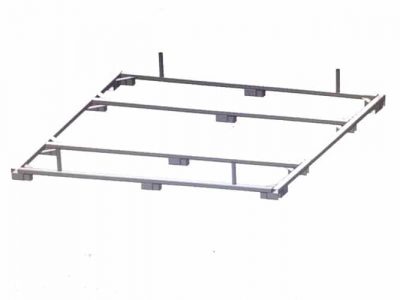

2. Steel Pallet of 3.0mm Cheap Temporary Fence Panels For Sale

There is rubber mat at the bottom of the pallet to avoid the pallet
destroyed the steel fencing panels, 4 metal corners to keep the pallet more strong

3. Features of 3.0mm Temporary Security Fence Panels

√ Lightweight and low cost

√ Anti-climb mesh for added security

√ One worker quickly install

√ 42 microns hot-dipped galvanized steel or Pre-galvanised 14 microns finish

√ Combine with feet, clamps, gates, bracing, stays, handrails

√ Export around Australia including Sydney, Melbourne, Brisbane Adelaide Perth, Darwin, and Auckland New Zealand

√ Long life to keep your site secure

√ Install with shade cloth to improve secure.

3. Application of 3.0mm Temporary Metal Fence Panels In Australia Wide

The durable and strong temporary fencing for sale is popular in large construction sites, including concert and festival crowd control, event perimeters, environmental protection and general road , commercial and civil construction projects, large building,residential housing sites, and sporting events.

Fence-Sample-Stand-By

Fence-For-Seaside

Fence-On-Construction-Site

If Inquiry, please contact our friendly sales, you will get free quote and better price guarantee.

Temporary Fencing For Sale

Temporary Fencing Tech

Fence Catalog

Factory View

Fence Factory

7-Day Fence Fast Delivery

Why can we do 7 days of proofing? Because we have over 10 welding platforms to produce fences every day, and a feet machine that can be stocked together to ship anytime.

And we have over 5 product experts with over 5 years of experience designing, they can be your sturdy backbone.
