Cattle Hay Round Bale Feeder – Only 5-6 Percent Waste

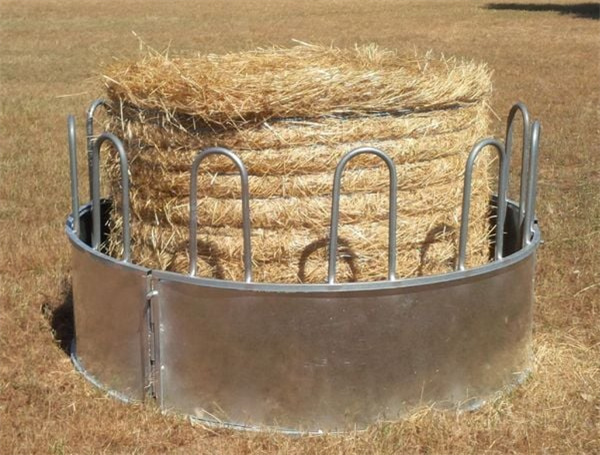

Hay rings are an essential way to decrease the trampling of hay and decrease wastage. The enclosed bottom on the feeder also ensures less trampling and less potential for damage/trapping of hooves.

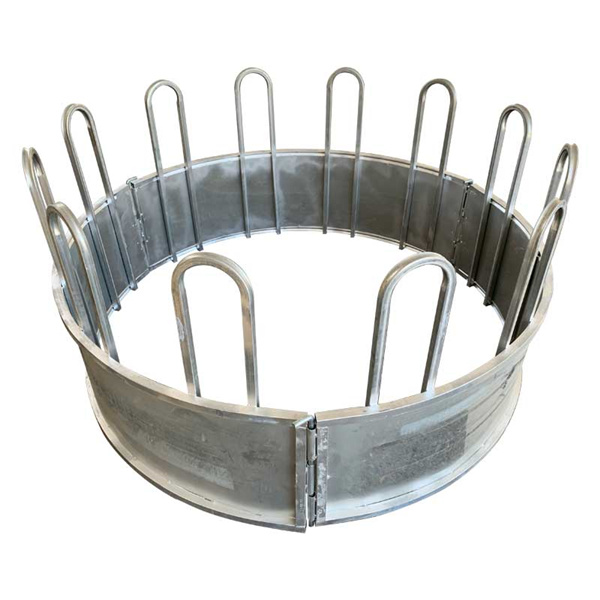

The round bale feeder comes in 3 sections with pins to lock each segment in place. This allows for easy relocation of feeder in your paddock.

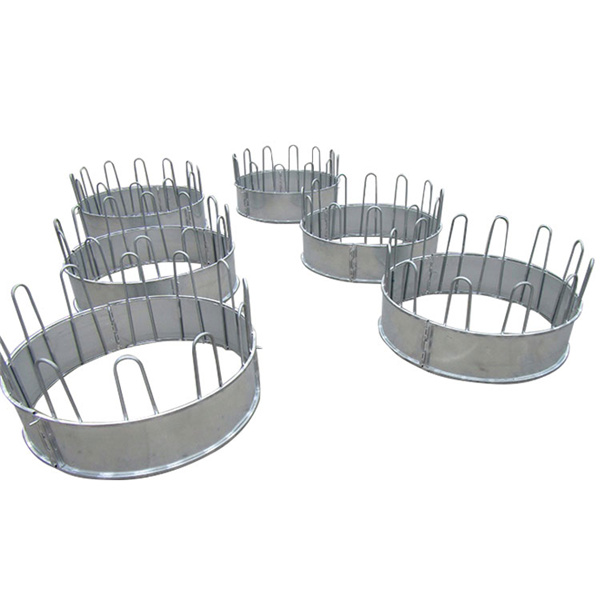

This type of hay ring for sale can maximize utilization for the hay, only 5%-6% waste, saving a lot of money for long, compared the Australia traditional hay feeders 10-20% waste. The hay ring feeder comes in 3 pieces, you bolt them together with pins. The bottom round steel plate limits the hay to run off when the cattle eat, and the cows can not step in.
1. The Popular Types Of Cattle Hay Feeder
1) 0.93 x 2.0m Round Bale Feeders For Cattle – Square Frame Tube
- Diameter: 2.0m round bales
- Height: 0.93m
- Feeds up to 14 animals simultaneously
- 3 Piece construction makes it easy to relocate
- Top, Bottom & Side Frames 30 x 30 x 2.0mm
- Hoops 25 x 25 x 2.0mm or 25x25x1.6 mm 12 pcs
- Plate 1.0mm Pre-galvanized Q195 – Q235 steel
2) 1850/2000mm x 1050mm Hay Feeder For Cows – Round Frame Pipe
- Diameter x Height: 1850/2000mm x 1050mm
- Frame Pipe: 25 x 25 x 1.5mm RHS / 40 x 40 x 1.5mm RHS
- Loop Pipe: OD25mm / OD32mm / OD40mm
- Pin is 530mm long
- Welding: Fully welded post brackets
- Connecting: Round pipe lugs&pins

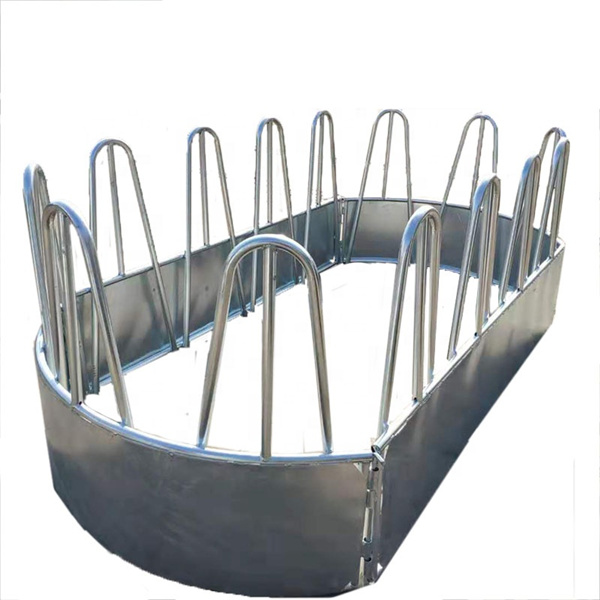

3) Stright Hay Feeder – 3.2m L x 1.5m W, 3.6m L x 2m W
Structure: 2pcs curved panels with 2pcs straight panels and 4pcs long pins
2. Packing Of Cattle Hay Feeders For Sale

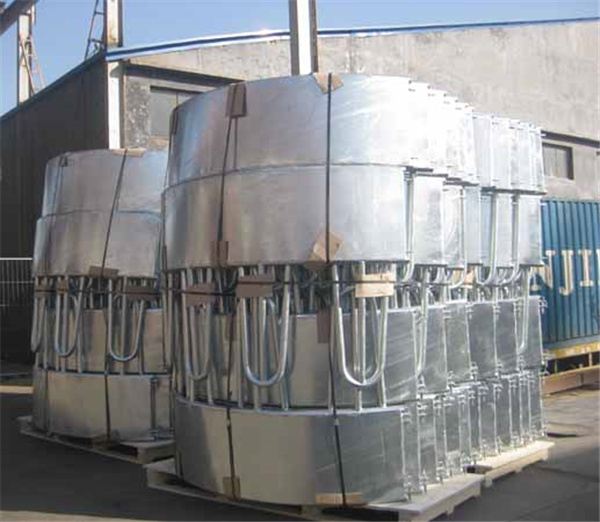

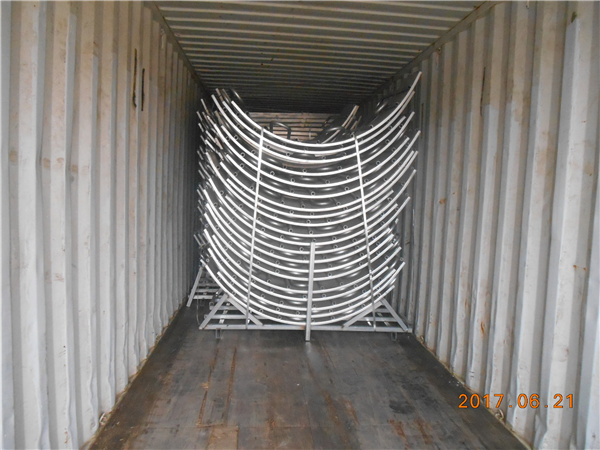

The hay rings for cattle will be stacked on a steel pallet first, the whole pallet will be fastened with steel or nylon belts finally.
3. Why Choose DB Fencing
- Tech Hay feeder drawing confirming with customers before production
- Raw Material Chemical Elements testing at the beginning of production
- 360 degrees fully hand welding
- Assemble in 5 minutes
- Feeds up to 14 animals simultaneously
- Reply your inquiry in 24 working hours
- Customized design is available
- Special discount can be offered with large quantity
Frame Tube Welding
Bending Loops
Pins Connect One Set=3 Pieces
